Subdrain/Weeping Tile

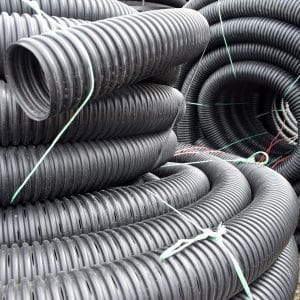

Drainage tile rolls come in a variety of sizes, with the most popular being 4″ in diameter. They can be perforated, solid or in filter cloth. Ideal for drainage projects where flexibility, lightweight and low cost are important.

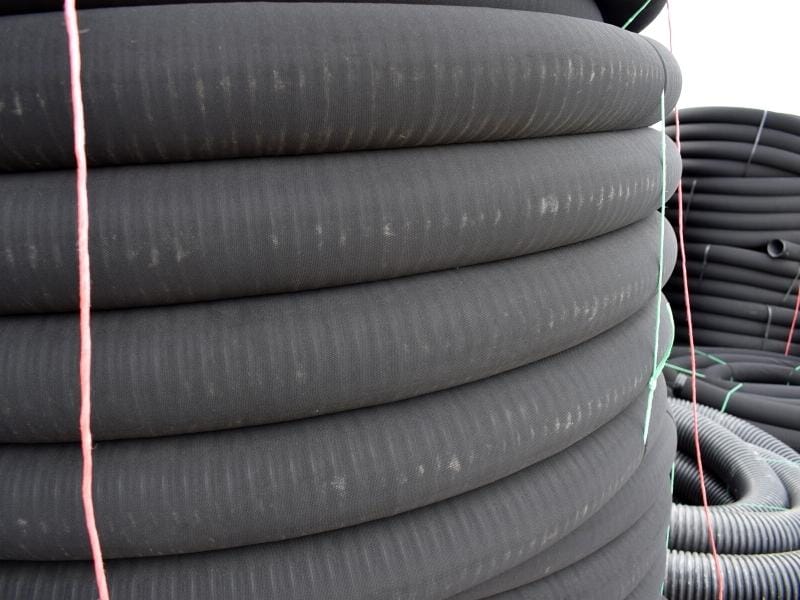

Solid, Perforated and Perf Socked in stock.

Download Brochure

Quote By Phone

Email Us

Single wall corrugated HDPE pipe is ideal for drainage projects where flexibility, lightweight and low cost are important.

Solid, Perforated and Perf Socked in stock. Multiple Drainage Applications.

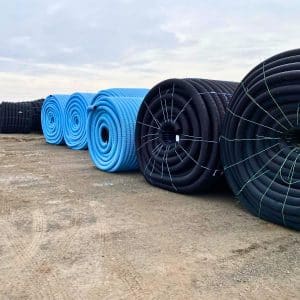

Single wall corrugated pipe has kept farms, golf courses, parks and playing fields dry for decades by channelling away excess underground moisture.

Homeowners find that the single wall HDPE corrugated pipe is an economical, easy–to–install solution to common residential stormwater drainage problems. These may include downspouts runoff, foundation and window well drains, driveway culverts and wet spots on the lawn. Single wall HDPE pipe is also used for highway edge drains, culverts and other construction applications where economy and durability are a priority.

Also offering Redline Subdrain. A great alternative to Db2. Check with your municipality to ensure it’s applicable for your job.

Looking to better understand the long-term value of subdrains? Check out our blog Proper Drainage at Work: The Long-Term Impact of Subdrain Installation.

You can also explore Subdrain frequently asked questions.

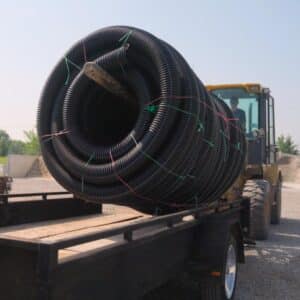

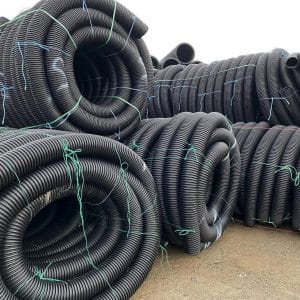

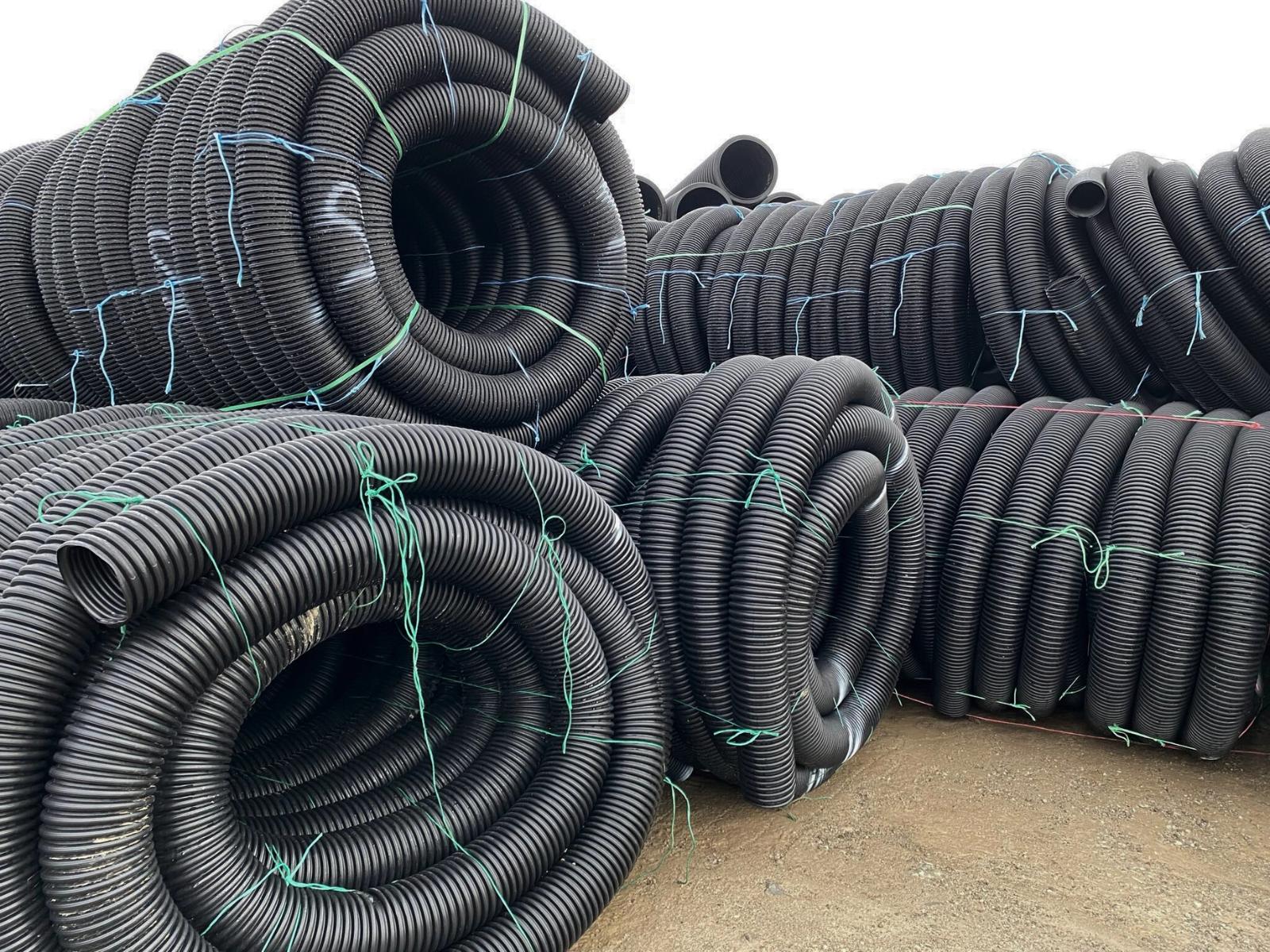

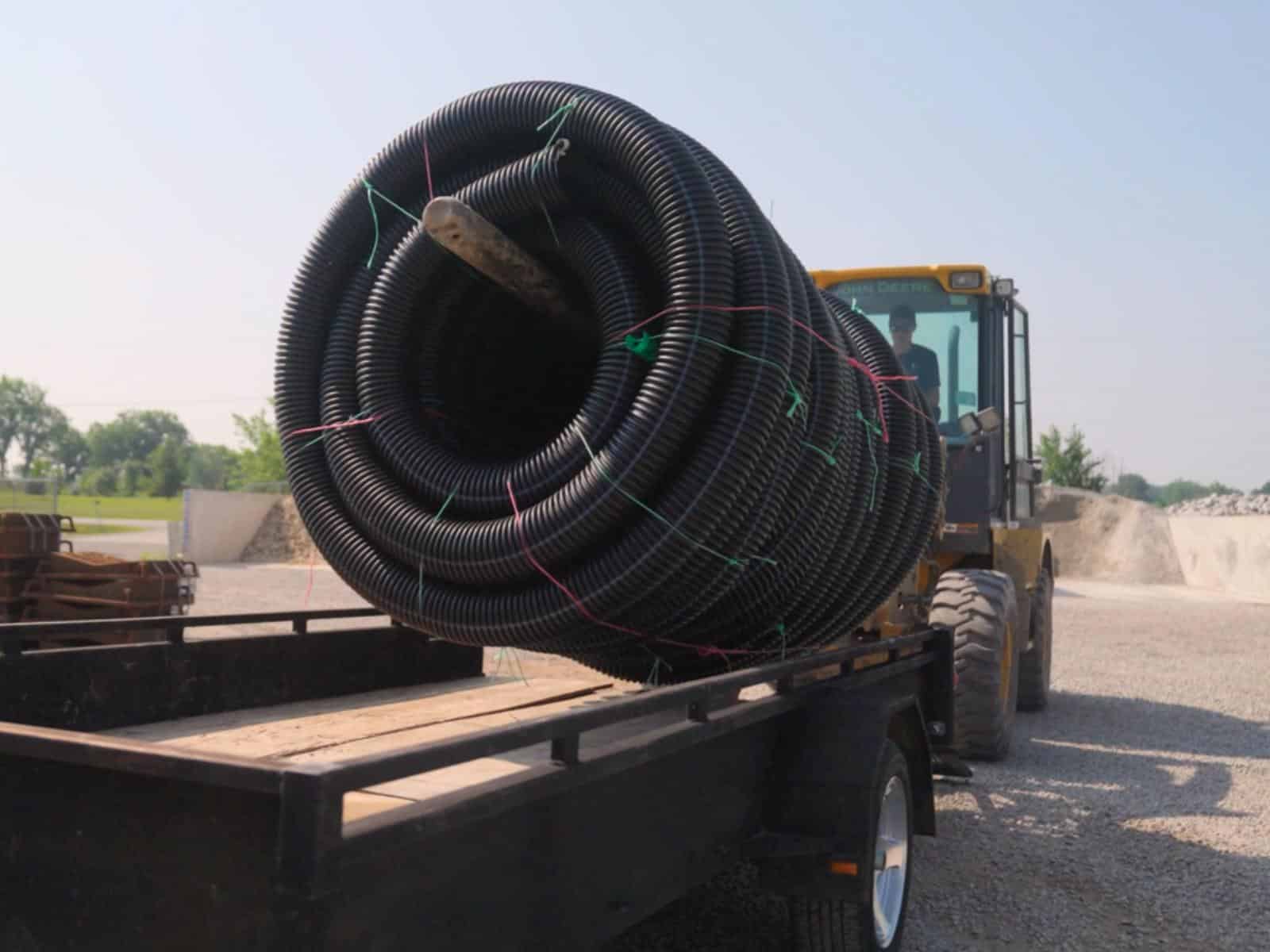

Below you’ll find a sizing guide for the Subdrains (Drainage Tile, Big O Pipe) that are always in stock for immediate pickup or delivery.

Size Description Roll Size (feet)
3″ Solid 125, 5,300
Perforated 125, 5,300
Perforated with filter 125, 5,300
4″ Solid 20, 100, 250
Perforated – small coil 100, 250
Perforated with Filter – small coil 100, 250
Perforated – maxi coil 4,000
Perforated with Filter – maxi coil 3,800
Heavy Duty 320kPa (S, PF) 250, 4000
Heavy Duty 320kPa (PF) 250, 4000
6″ Solid 20, 100, 350, 800
Perforated 20, 100, 350, 800, 1400
Perforated with Filter 20, 100, 350, 800, 1400
Heavy Duty 320kPa (S, PF) Special Order
Heavy Duty 320kPa (Filter) Special Order
8″ Solid 20, 100, 350, 800
Perforated 20, 100, 350, 800
Perforated with Filter 20, 100, 350, 800
Flexible Doublewall – Non Perf 825′
Flexible Doublewall – Perf 825′
Flexible Doublewall –  with Sock 825′
Flexible Doublewall – Fine Cut 825′
10″ Solid 20, 100, 600
Perforated 20, 100, 600
Perforated with Filter 20, 100, 600
12″ Solid 20, 100, 330
Perforated 20, 100, 330
Perforated with Filter 20, 100, 330
Flexible Doublewall – Non Perf 320 ft
Flexible Doublewall – Perf 320 ft
Flexible Doublewall –  with Sock 320 ft
Flexible Doublewall – Fine Cut 320 ft
15″ Solid 150 ft
Fine Cut 150 ft
Flexible Doublewall – Non Perf 190 ft
Flexible Doublewall – Perf 190 ft
Flexible Doublewall –  with Sock 190 ft
Flexible Doublewall – Fine Cut 190 ft

Learn more about the basics of Subdrain installation and it’s benefits below:

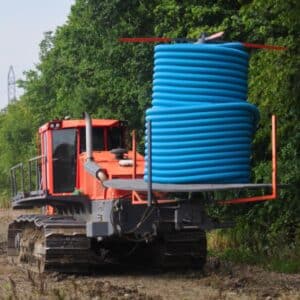

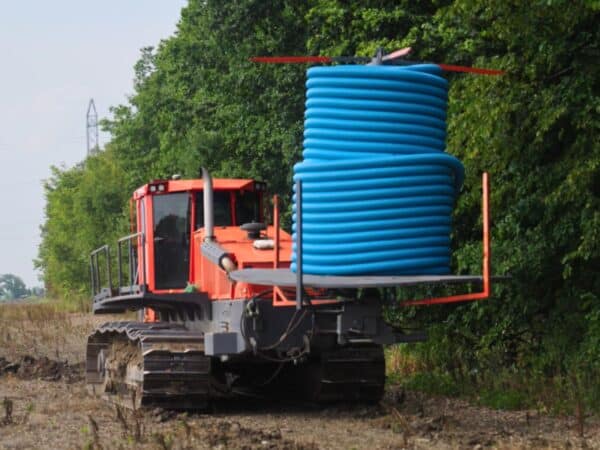

Subsurface drainage through Subdrain/ Weeping Tile installation and management works by removing excess water from fields. Improved field drainage creates significant benefits for your soil health, environmental impact, and increased crop yield for larger profits year after year.

How does subdrain installation benefit your land?
1. Reduces Excess Water
Subsurface drainage redirects water away from areas with a high water table. This is critical for areas with frequent flooding and soil saturation that can negatively impact crop health.

2. Increases Drought Tolerance
In areas where drought is a challenge, subdrain systems can be used to improve water retention in the soil, or divert excess rainwater to holding ponds for future use.

3. Minimizes Erosion
Soil erosion and degradation can be caused by excess rainfall, resulting in loss of soil volume. This can be magnified by traditional plowing methods. Improved drainage can reduce the impact of heavy rainfalls, helping to preserve soil nutrients and the surrounding areas of your property that can be affected by erosion.

4. Lowers Environmental Impact
Agricultural runoff can be high in dissolved minerals and organic compounds, which can cause issues for neighbouring water supply. A drainage system will ensure that this runoff is redirected to avoid local rivers and ponds, protecting the local ecosystem.

How does subdrain installation benefit your crops?

1. Removes Excess Water
Effective subsurface drainage removes excess soil water in the root zone, allowing for improved soil aeration. Prolonged exposure to saturated conditions and poor soil aeration can stress the crop, reducing yield.

2. Increased Workability
Drainage can improve field trafficability, allowing more reliable field access while reducing compaction. Drier soils are less susceptible to compaction than wetter soils.

3. Deeper Roots
Drainage enables crops to establish deeper root systems in fields, allowing greater access to nutrients and soil water.

4. Improved Consistency
Drainage can reduce the year-to-year variability in yields from poorly drained fields. Drainage can increase nitrification (the conversion of ammonia to nitrate) in most soils, providing more nitrate for plant uptake.

Farmers have told us that they expect a 10 – 20% increase in crop yield after investing in proper drainage.

*Always check with your municipal requirements prior to installation.
