Manufactured from high-density polyethylene with U.V. inhibitors for liquids up to 1.7 specific gravity. Tanks conform to the requirements of NSF/ANSI Standard 61. Low profile design high a height ranging from 36″ to 54″. Ontario Agra is fully stocked with all sizes of Aquifer Low Profile Cistern Tanks. Ready for pick up or delivery.

Download Brochure

Quote By Phone

Email Us

Aquifer Low Profile Poly (Plastic) Cistern Tanks strong, durable, quality construction is designed for bulk collection and storage of potable or non-potable water. Tanks can be used in below and above-ground applications. Aquifers can be buried up to 28″ deep and can be backfilled empty.

• Sectional Ribbing designed to withstand up to 400 PSF load pressure
• Manufactured from high-density polyethylene with U.V. inhibitors
• Conform to the requirements of NSF/ANSI Standard 61
• FDA compliant resins

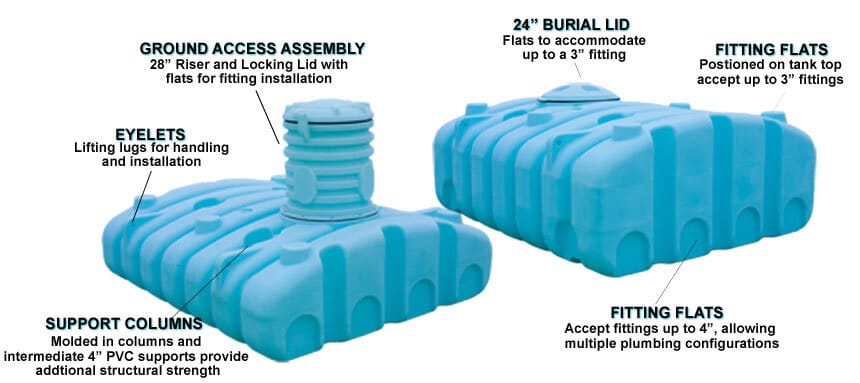

• Low Profile design with multiple fitting flats to accommodate a variety of plumbing configurations

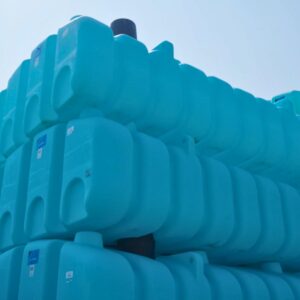

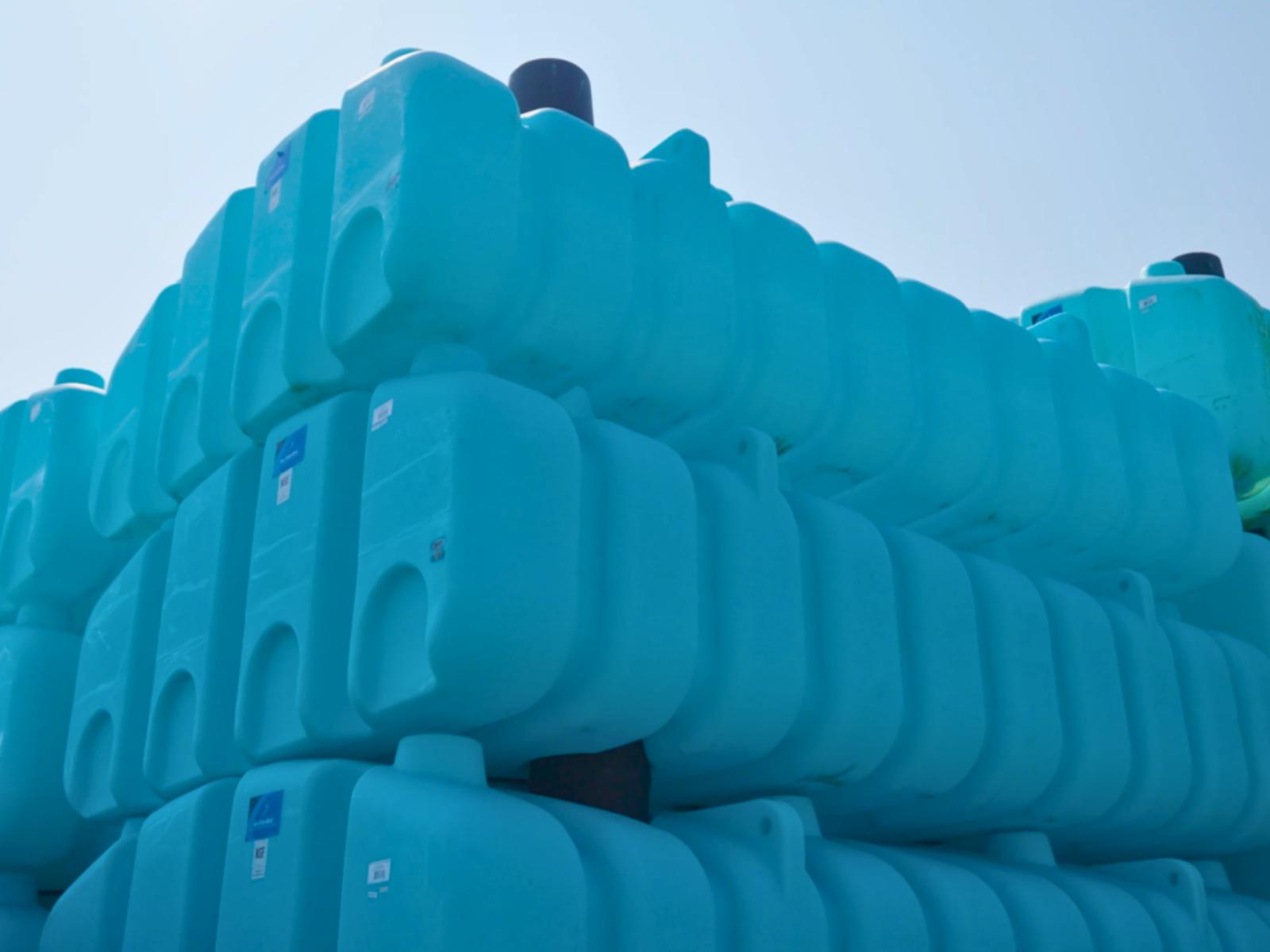

• Tanks can be stacked for shipping and storage
• For the containment of liquids with up to 1.7 specific gravity

If used efficiently, cistern owners will still consume an average of approximately 30 gallons daily per person. Using this math, a family of four being conservative with their water will use an average of 120 gallons daily, or 3600 gallons monthly.

Our largest option is a 1700 Gallon Poly Cistern Tank or a 2500 Gallon Low Profile Aquifer Cistern. These tanks would be refilled by a water delivery truck approximately every 10-20 days for a family of four. Depending on your water usage, number of people in your household, and if you have a secondary water source such as rainwater collection, you may be able to use a smaller tank. Water can become stale if stored for too long, so having it filled frequently will create a more enjoyable experience.

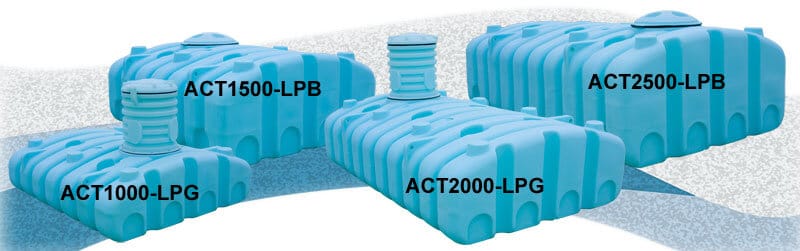

PART NO. AQUIFER LOW-PROFILE CISTERN TANKS Weight Dimensions
ACT1000-LPB 1000 Gallon w/ Burial Lid 559 98x111x36

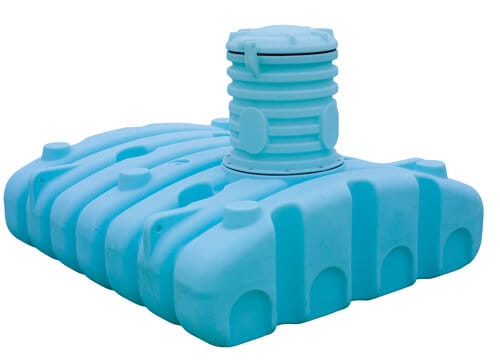

ACT1000-LPG 1000 Gallon w/ 28″ Ground Access Assy 595 98x111x36

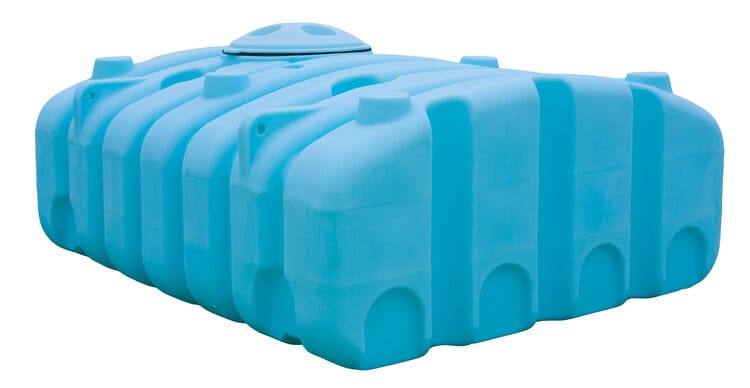

ACT1500-LPB 1500 Gallon w/ Burial Lid 702 98x111x48
ACT1500-LPG 1500 Gallon w/ 28″ Ground Access Assy 738 98x111x48
ACT2000-LPB 2000 Gallon w/ Burial Lid 917 98x158x45
ACT2000-LPG 2000 Gallon w/ 28″ Ground Access Assy 953 98x158x45

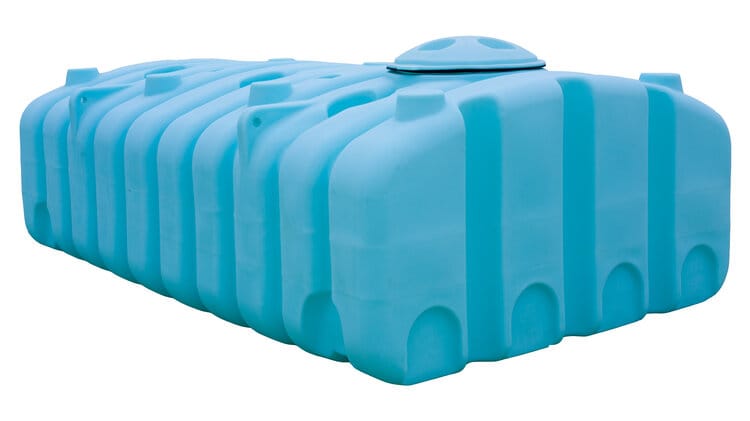

ACT2500-LPB 2500 Gallon w/ Burial Lid 1031 98x158x54
ACT2500-LPG 2500 Gallon w/ 28″ Ground Access Assy 1067 98x158x54

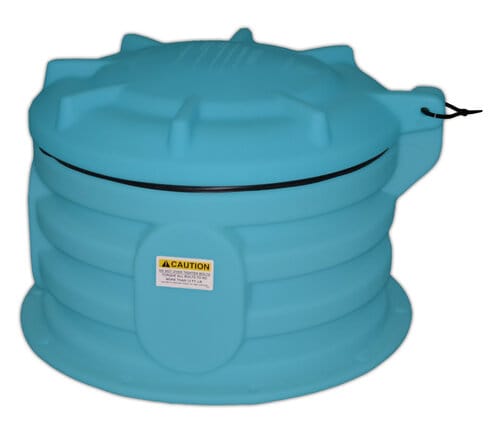

ACT-16054 16″ Aquifer Ground Access Assy-Riser & Lid 43 34×24

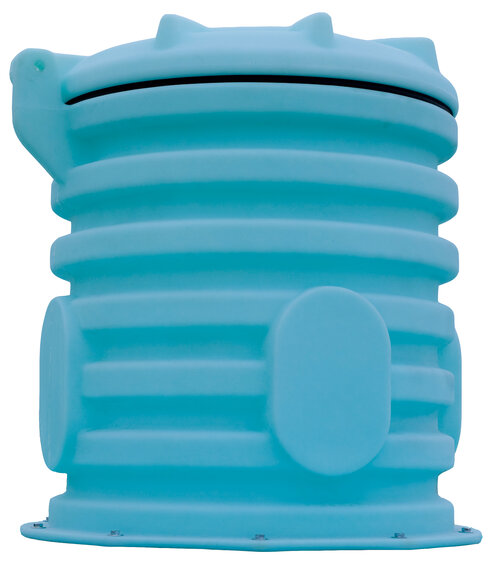

ACT-16052 28″ Aquifer Ground Access Assy-Riser & Lid 53 34×38
ACT-16053 24″ Gallon w/ Burial Lid & Gasket 17 35×8

Durability: Both concrete and poly cisterns have excellent durability when used in the correct conditions. Factors such as soil type and backfilling material are important aspects of your purchase decision.

Lifespan: Cisterns can last 30 years or more when given proper ongoing maintenance.

Cost: Concrete cisterns cost more to purchase and install than poly cistern tanks.

Installation: Concrete is heavier and less maneuverable than plastic which leads to longer installation using heavy machinery.

Corrosion: Unlike poly cistern tanks, concrete tanks may corrode over time or begin cracking with age. Proper maintenance can help reduce the risk of these issues.

Low Profile Aquifer – Manufactured with the same materials as poly cisterns, but designed with a shorter height for areas where digging is less of an option. These are frequently used for storing water under permanent trailers or places with shallow rocks such as Northern Ontario.

There are some traditional methods available of measuring the water level of a cistern tank, however, they tend to be much less accurate that modern technological options. The stick method consists of dipping a long stick or pole into your tank to see how deep the water level is. Others simply guess based on time and familiarity with their usage.

Our recommendation would be the PTLevel which can accurately measure your water level and be tracked on your phone. This allows to you access real-time measurements, and order the exact quantity of water you need.
