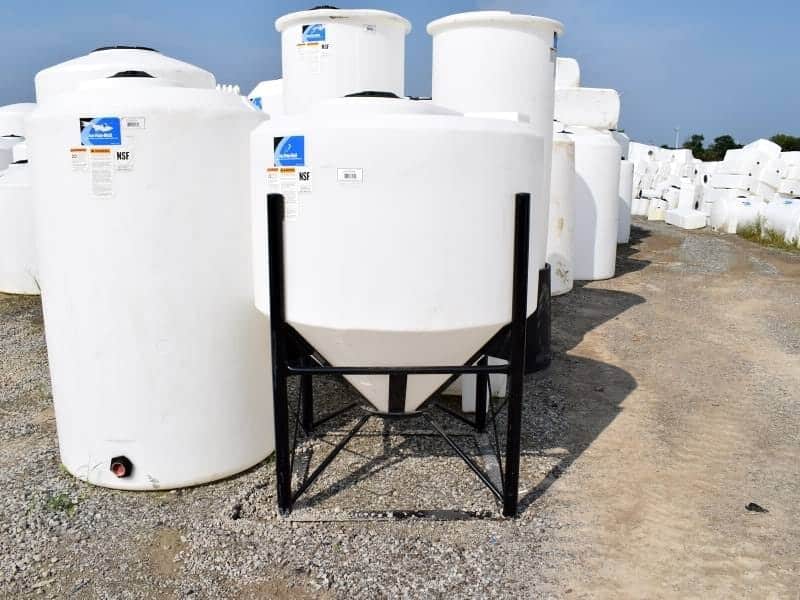

Cone Bottom Tanks are selected when a more complete drain out of stored chemicals is required in indoor or outdoor installations. Tanks require stands to support the conical bottoms. Tanks are manufactured from medium- or high-density polyethylene with U.V. inhibitors. Tank walls are translucent for level viewing and equipped with gallon indicators.
Flat Top Tanks
| PART NO. | CONE BOTTOM TANKS – FLAT TOP | Weight | Dimensions |
| CB0150-36 | 150 Gallon-45 deg | 63 | 36 x51 |
| CB0200-42 | 200 Gallon-45 deg | 77 | 42 x55 |
| CBFD240-42 | 240 Gallon-45 deg Full Drain | 77 | 42 x59 |
| CB0295-52 | 295 Gallon-45 deg | 97 | 52 x51 |
| CB0345-52 | 345 Gallon-45 deg | 102 | 52 x58 |
| CB0350-42 | 350 Gallon-45 deg | 120 | 42 x81 |
| CB0500-52 | 500 Gallon-45 deg | 132 | 52 x81 |
| CB0750-52 | 750 Gallon-45 deg | 171 | 52 x105 |
| CB0850-90 | 850 Gallon-15 deg | 212 | 91 x56 |
| CB1150-90 | 1150 Gallon-15 deg | 242 | 91 x67 |
| CB1550-90 | 1550 Gallon-30 deg | 286 | 91 x88 |
| CB2450-90 | 2450 Gallon-15 deg | 437 | 91 x114 |
| CB2550-90 | 2550 Gallon-30 deg | 502 | 91 x126 |

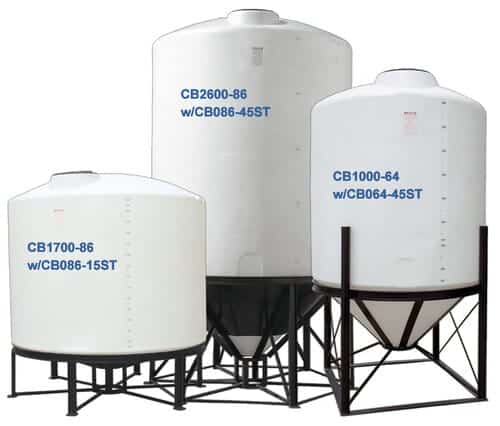

Dome Top Tanks
| PART NO. | CONE BOTTOM TANKS – DOME TOP | Weight | Dimensions |
| CB0300-42 | 300 Gallon-45 deg | 102 | 42×67 |
| CB0800-86 | 800 Gallon-15 deg | 182 | 86×48 |
| CB1000-64 | 1000 Gallon-45 deg | 252 | 64×98 |
| CB1000-90 | 1000 Gallon-15 deg | 212 | 91×54 |
| CB1005-64 | 1005 Gallon-15 deg | 222 | 64×86 |
| CB1200-90 | 1200 Gallon-15 deg | 242 | 91×62 |
| CB1300-90 | 1300 Gallon-15 deg | 262 | 91×65 |
| CB1490-64 | 1490 Gallon-45 deg | 342 | 64×132 |
| CB1500-64 | 1500 Gallon-15 deg | 332 | 64×122 |
| CB1500-96 | 1500 Gallon-30 deg | 252 | 96×80 |
| CB1600-90 | 1600 Gallon-30 deg | 286 | 91×85 |
| CB1700-86 | 1700 Gallon-15 deg | 286 | 86×85 |
| CB2000-96 | 2000 Gallon-30 deg | 292 | 96×96 |
| CB2495-90 | 2495 Gallon-30 deg | 487 | 91×119 |
| CB2500-90 | 2500 Gallon-15 deg | 437 | 91×111 |
| CB2600-90 | 2600 Gallon-30 deg | 502 | 91×123 |
| CB2600-86 | 2600 Gallon-45 deg | 502 | 86×146 |
| CB3000-90 | 3000 Gallon-15 deg | 552 | 91×128 |
| CB3000-96 | 3000 Gallon-30 deg | 552 | 96×125 |
| CB4200-122 | 4200 Gallon-15 deg | 1102 | 122×113 |
| CB4600-102 | 4600 Gallon-15 deg | 1202 | 102×155 |
| CB4900-102 | 4900 Gallon-15 deg | 1302 | 102×159 |
| CB6000-122 | 6000 Gallon-15 deg | 1602 | 122×162 |
| CB6900-122 | 6900 Gallon-15 deg | 1702 | 122×168 |
| CB7500-142 | 7500 Gallon-15 deg | 1677 | 142×163 |
| CB8250-122 | 8250 Gallon-15 deg | 2102 | 122×195 |
| CB10500-142 | 10500 Gallon-15 deg | 2502 | 142×209 |
| CB12500-142 | 12500 Gallon-15 deg | 3402 | 142×239 |
Open Top Tanks
Open Top Tanks are selected for collection systems, temporary liquid storage or as secondary containment for tanks in indoor or outdoor stationary installations. Tanks require stands to support the conical bottoms. Tanks are manufactured from medium- or high-density polyethylene with U.V. inhibitors. Tank walls are translucent for level viewing and equipped with gallon indicators.
| PART NO. | CONE BOTTOM TANKS – OPEN TOP | Weight | Dimensions |
| OC0840-90 | 840 Gallon-15 deg with bolt-on top | 214 | 91×49 |
| OC1010-64 | 1010 Gallon-45 deg with bolt-on top | 252 | 64×99 |
| OC1050-90 | 1050 Gallon-15 deg with bolt-on top | 242 | 91×57 |
| OC1150-90 | 1150 Gallon-15 deg with bolt-on top | 262 | 91×60 |
| OC1450-90 | 1450 Gallon-30 deg with bolt-on top | 286 | 91×79 |
| OC1500-64 | 1500 Gallon-45 deg with bolt-on top | 342 | 64×134 |
| OC1710-86 | 1710 Gallon-15 deg with bolt-on top | 286 | 86×87 |
| OC2350-90 | 2350 Gallon-15 deg with bolt-on top | 437 | 91×106 |
| OC2440-90 | 2440 Gallon-30 deg with bolt-on top | 502 | 91×117 |
| OC2610-86 | 2610 Gallon-45 deg with bolt-on top | 502 | 86×147 |
Inductor Tanks
Inductor Tanks are selected as supply tanks or indoor applications and feature conical bottoms to facilitate liquid drain out. Full-Drain tanks are available with moulded in threaded outlet for complete drainage. Tanks require stands to support the conical bottoms. Tanks are manufactured from medium-density polyethylene with U.V. stabilizers and designed for containment of liquids of up to 1.7 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators.
| PART NO. | INDUCTOR TANKS | Weight | Dimensions |
| INFD7-15 | 7 Gallon Full Drain | 8 | 15″x21″ |
| INFD10-15 | 10 Gallon Full Drain | 10 | 15″x25″ |
| IN0015-19 | 15 Gallon | 12 | 19×24 |
| INFD15-19 | 15 Gallon Full Drain | 12 | 19×27 |
| IN0015-19SM | 15 Gallon Side Mount | 10 | 19×24 |
| IN0030-24 | 30 Gallon | 17 | 24×30 |
| INFD30-24 | 30 Gallon Full Drain | 17 | 24×33 |
| INFD40-30 | 40 Gallon Full Drain | 26 | 30×34 |
| IN0055-24 | 55 Gallon x 24 | 24 | 24×42 |
| INFD55-24 | 55 Gallon x 24 Full Drain | 24 | 24×46 |
| INFD60-30 | 60 Gallon x 30 Full Drain | 28 | 30×38 |
| IN0085-30 | 85 Gallon | 37 | 30×43 |
| INFD85-30 | 85 Gallon Full Drain | 37 | 30×48 |
| IN0110-30 | 110 Gallon | 44 | 30×51 |
| INFD110-30 | 110 Gallon Full Drain | 44 | 30×56 |
Batch Tanks
Batch Tanks are designed for indoor applications. The tanks support many features including vertical, open-top vertical, cone bottom, as well as open-top cone bottom options. All tanks feature 8″ lids and one standard fitting. A hinged lid option is also available on the open-top styles. Both Polyethylene and metal stands designed for all styles make these tanks very versatile. Tanks are manufactured from medium-density polyethylene with U.V. stabilizers and designed for containment of liquids of up to 2.0 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators.
| PART NO. | CONE BOTTOM BATCH TANKS – OPEN TOP | Weight | Dimensions |
| OC0055-23 | 55 Gallon | 26 | 23×37 |
| OC0100-23 | 100 Gallon | 36 | 23×63 |
| OC0145-36 | 145 Gallon | 52 | 36×41 |
| OC0200-36 | 200 Gallon | 58 | 36×53 |
| OC0250-36 | 250 Gallon | 76 | 36×65 |
| OC0325-36 | 325 Gallon | 92 | 36×82 |
Still searching for the ideal liquid storage solution? View the rest of our tank options here. You can also explore Liquid Storage frequently asked questions.
*Always check with your municipal requirements prior to installation.
