Q: GridX Paving Grid Features

Lock into Strength The strong interlocking grid can be filled with soil, gravel, grass, or paving stones to improve grid strength and withstand heavy traffic, including construction equipment, snowplows, lawnmowers, trucks and other utility vehicles. A Green Solution The porous GridX web structure supports Low Impact Development by allowing rain and stormwater to saturate the ground evenly, improving earth retention, slope protection and groundwater recharge. A Natural Fit Manufactured from 100% post-consumer recycled (PCR) plastic, GridX is an environmentally-friendly resin product that leaves behind a significantly smaller ecological footprint than other paving methods. Leading-Edge Design GridX’s matrix design combines rigid squares for maximum load-bearing durability with curved, torsional flex fins to handle thermal expansion and contraction as well as weight fluctuations.

Q: Common Uses of the GridX Paving Grid

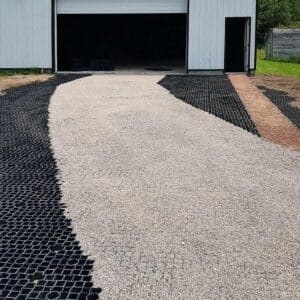

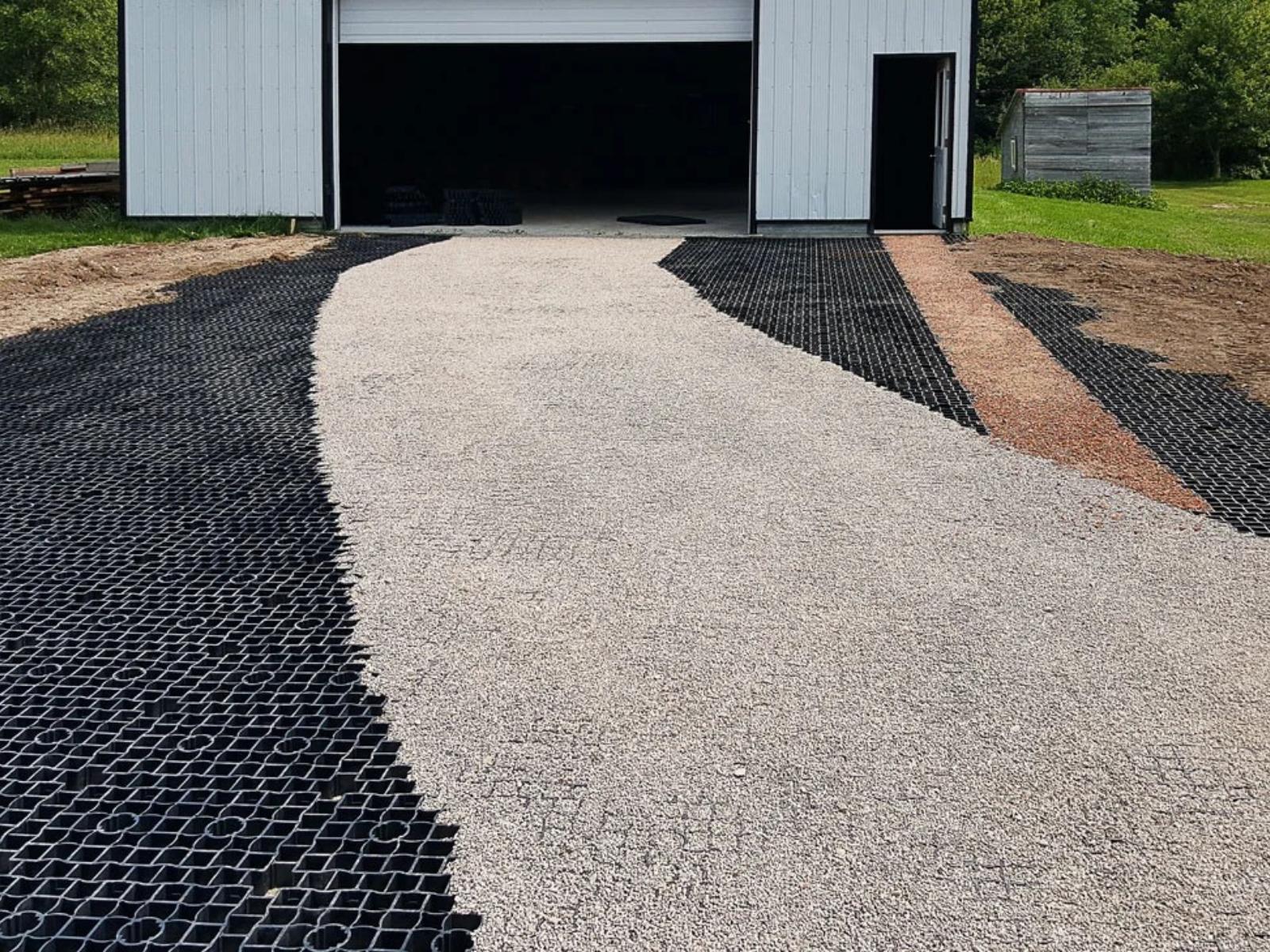

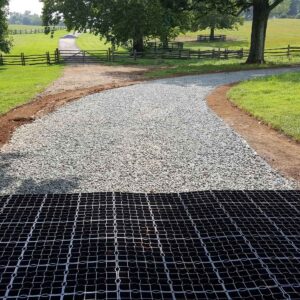

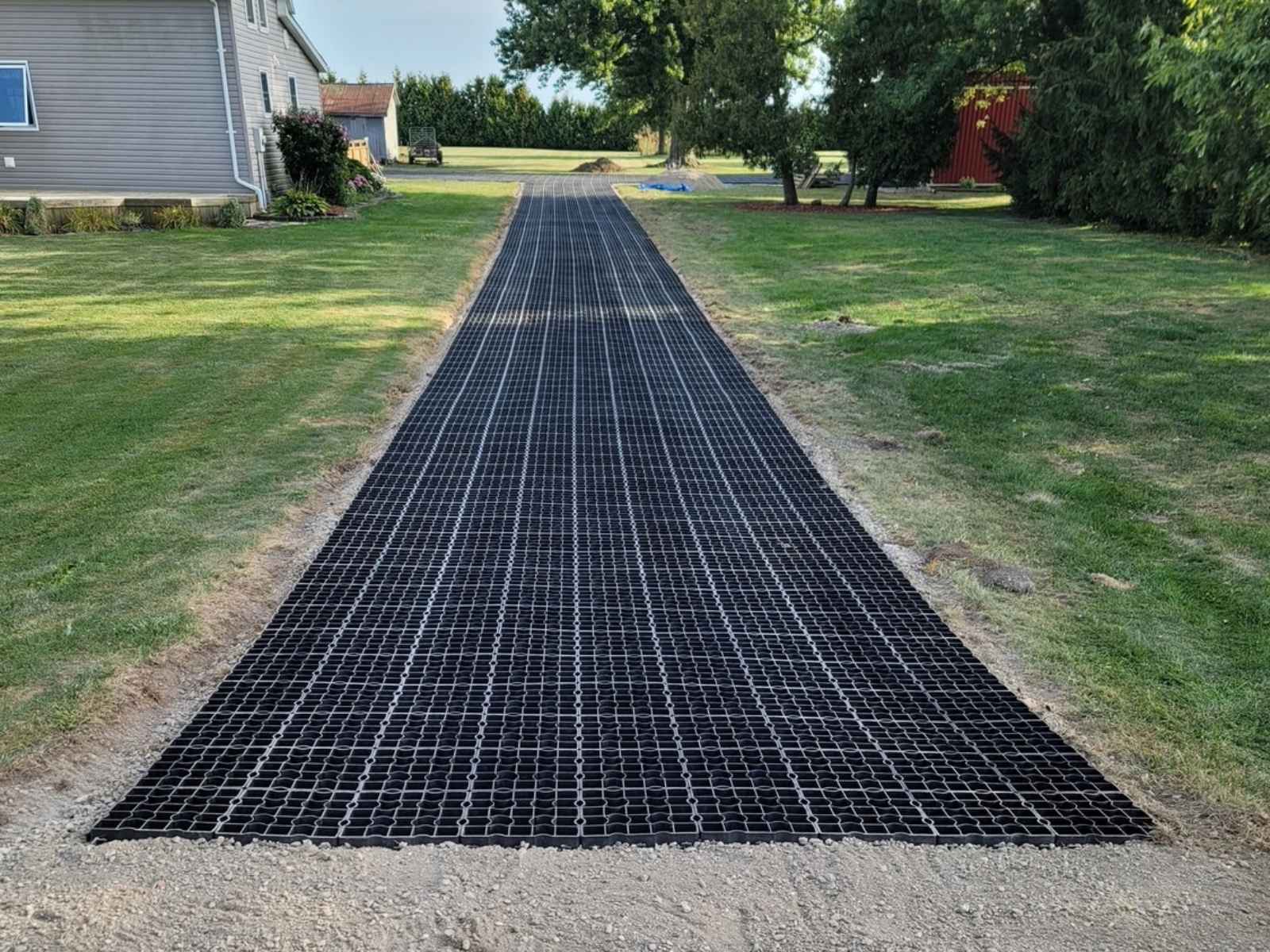

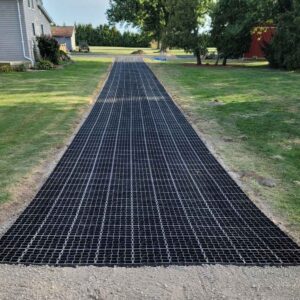

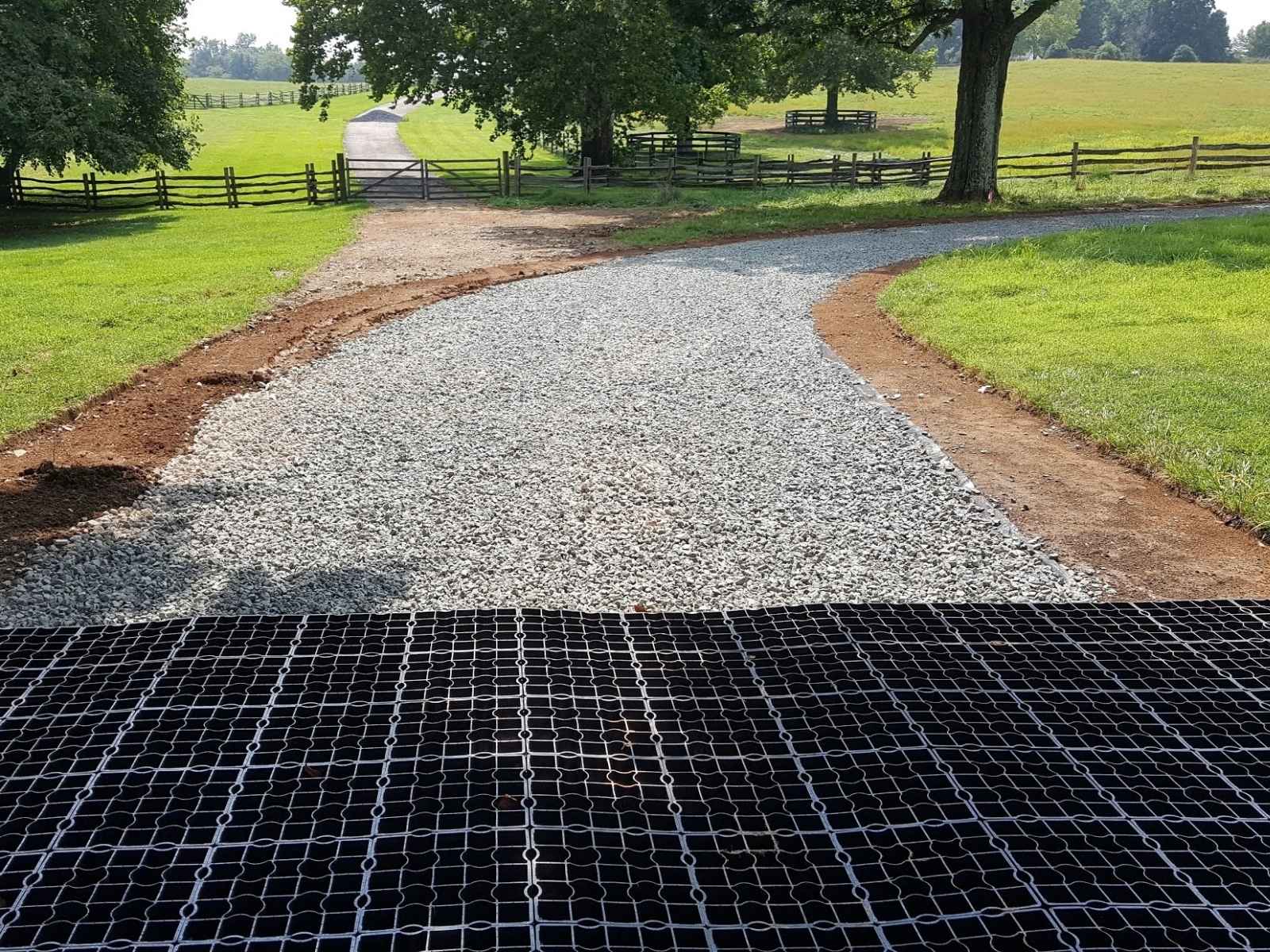

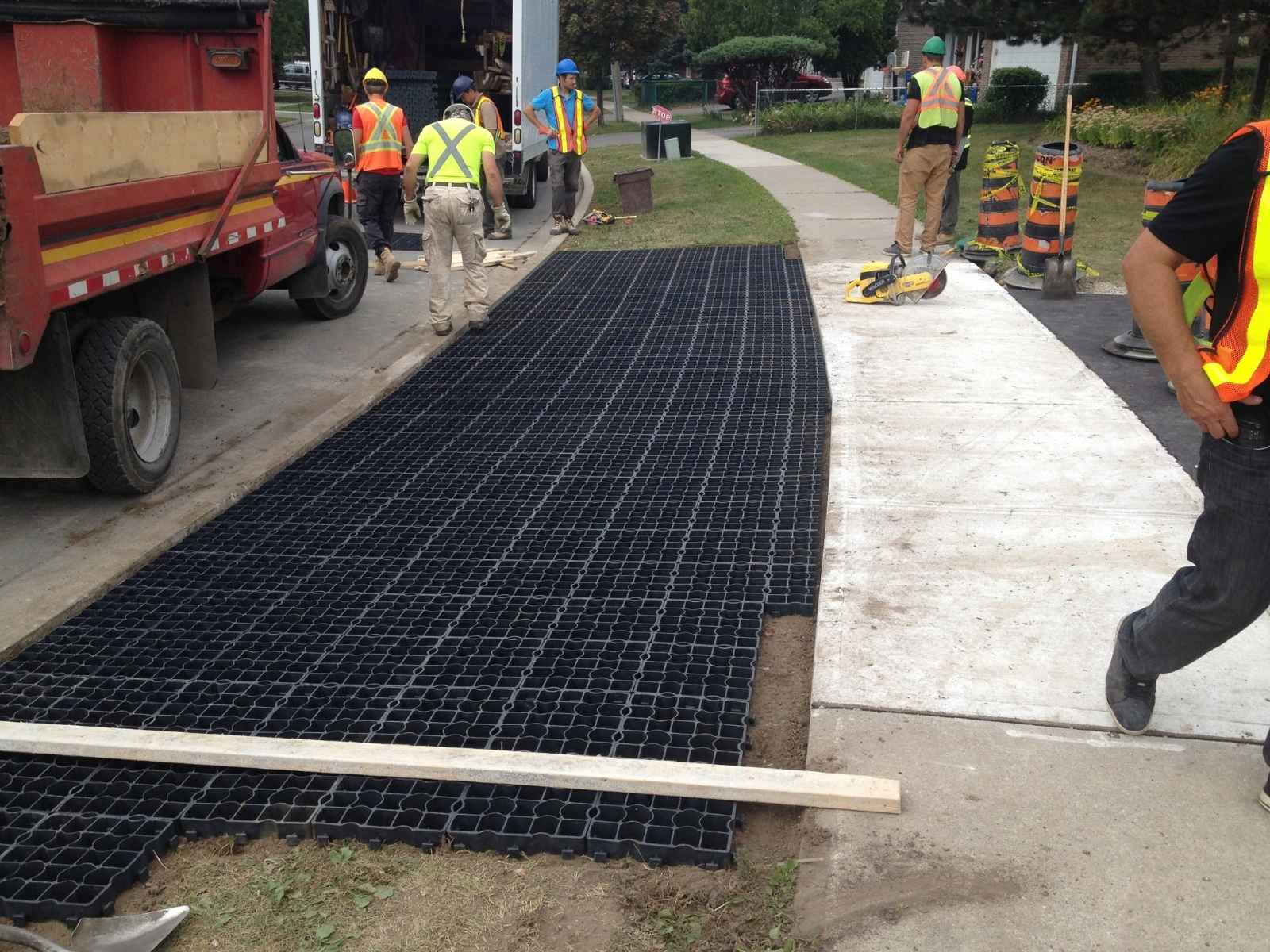

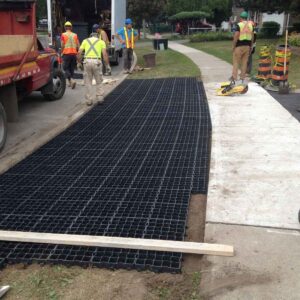

Roads and Driveways GridX is ideal for cost-effective and fast construction of access routes for industrial and commercial buildings, fire lanes, emergency routes and remote areas. Parking Lots Break new ground with a permeable parking lot that is easy to install and maintain. Optional 12” x 12“ porous paver stones can be set into the Double Stone Parking Grid for 8 foot parking space line markers. Animal Paddocks Solve the problem of messy farm yards, paddocks and equestrian arenas with a reliable, well-drained surface. GridX panels drain evenly and hold soil in place, creating a safe and clean environment for you and your animals without the worry of falls from muddy, slippery surfaces.

Q: Product Specs for GridX Parking Grid

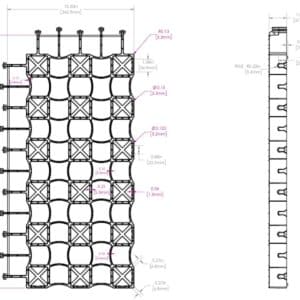

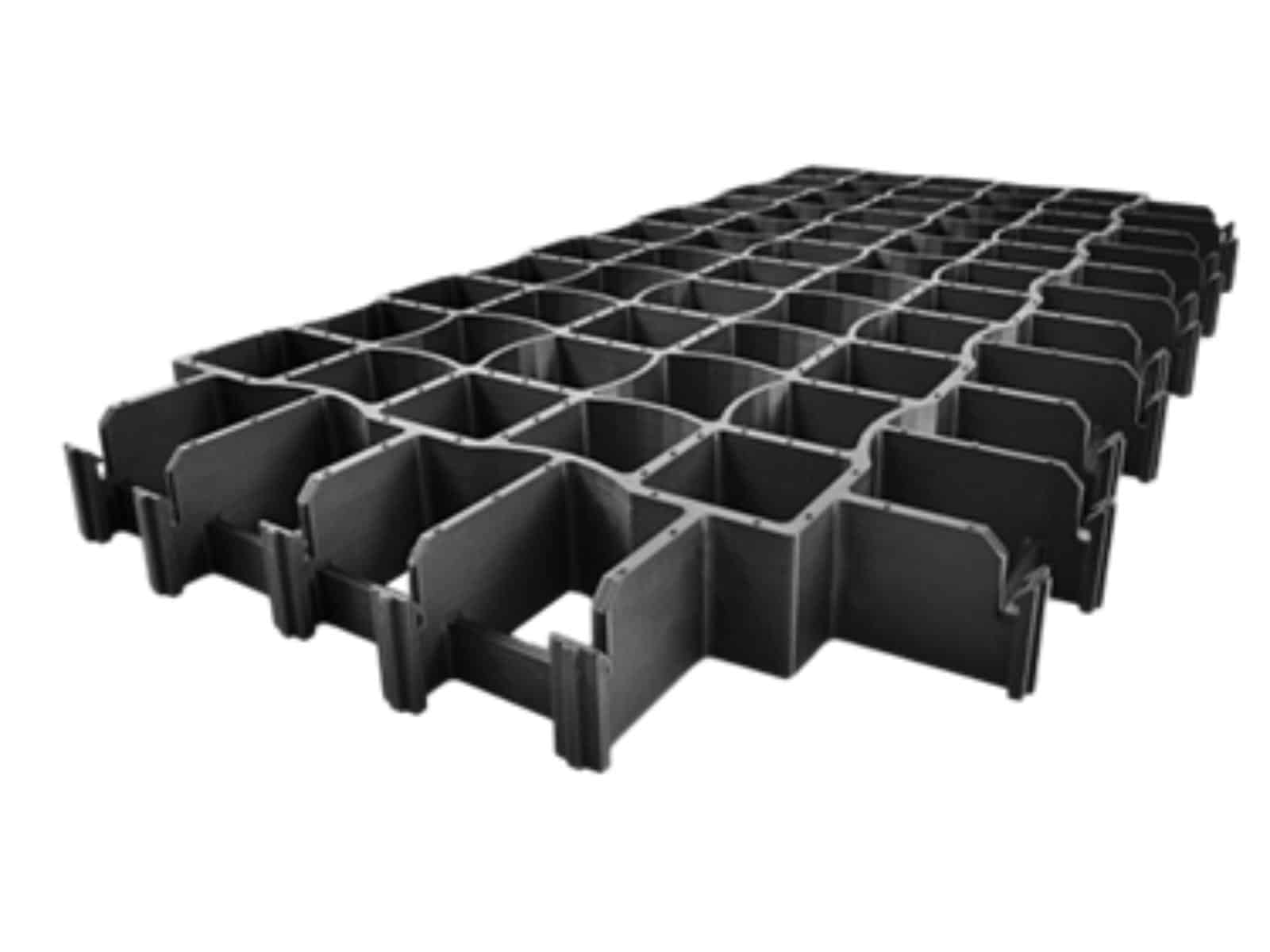

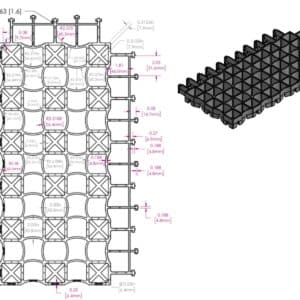

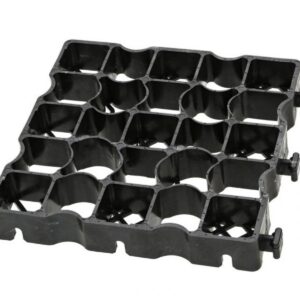

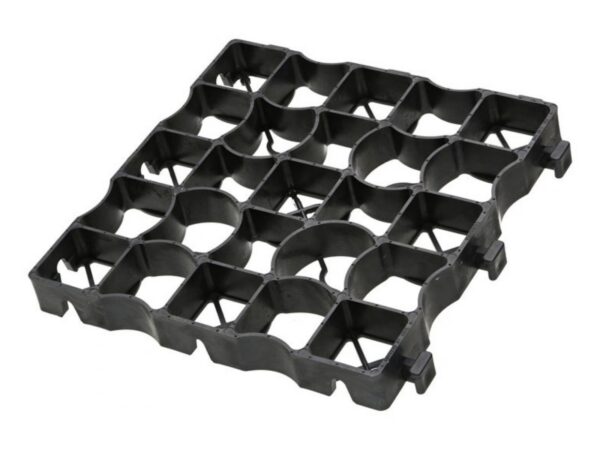

GridX G50 Parking Grid As a natural alternative to asphalt or concrete, GridX is perfect for parking lots, driveways, high traffic walkways, animal paddocks and many other applications. The porous grid stabilizes ground material eliminating potholes, ruts and mud – and allows water to permeate the ground, creating a flexible and durable surface for vehicles, pedestrians and livestock. Grid Specifications Dimensions 432 mm (13.5”) x 686 mm (27”) x 47mm (1.875”) Coverage Area 0.235 m2 (2.53 sq ft) Weight 1.78 kg (3.9 lbs) Loading 807 ton/m2 (165,000 lbs/sq ft) Depending on Fill Type Wall Thickness Variable Up to 6.4 mm (0.2519”) Climate -40oC to +40 oC (-40 oF to 104 oF) Interlock 54 Locking Notch Connections / m2 Maintenance None, Snowplow/Blower Ready Material 100% Post Consumer Recycled Plastic Colour Black Standard Packaging Details 1 Box / 8 pcs 1.86 m 40.64 cm x 73.66 cm x 40.64 cm – 16.3 kg 1 Box / 8 pcs 20 sq ft 16” W x 29” L x 16” H – 36 lbs 1 Pallet / 240 pcs / 56.21 m2 1.22 m x 1.42 m x 2.01 m – 436 kgs 1 Pallet / 240 pcs / 605 sq ft 48” W x 56” L x 79” H – 960 lbs 21 Pallets / 5,040 pcs / 1180 m2 8,916 kgs 21 Pallets / 5,040 pcs / 12,700 sq ft 19,656 lbs

Q: Product Specs for GridX Paving Stone Grid

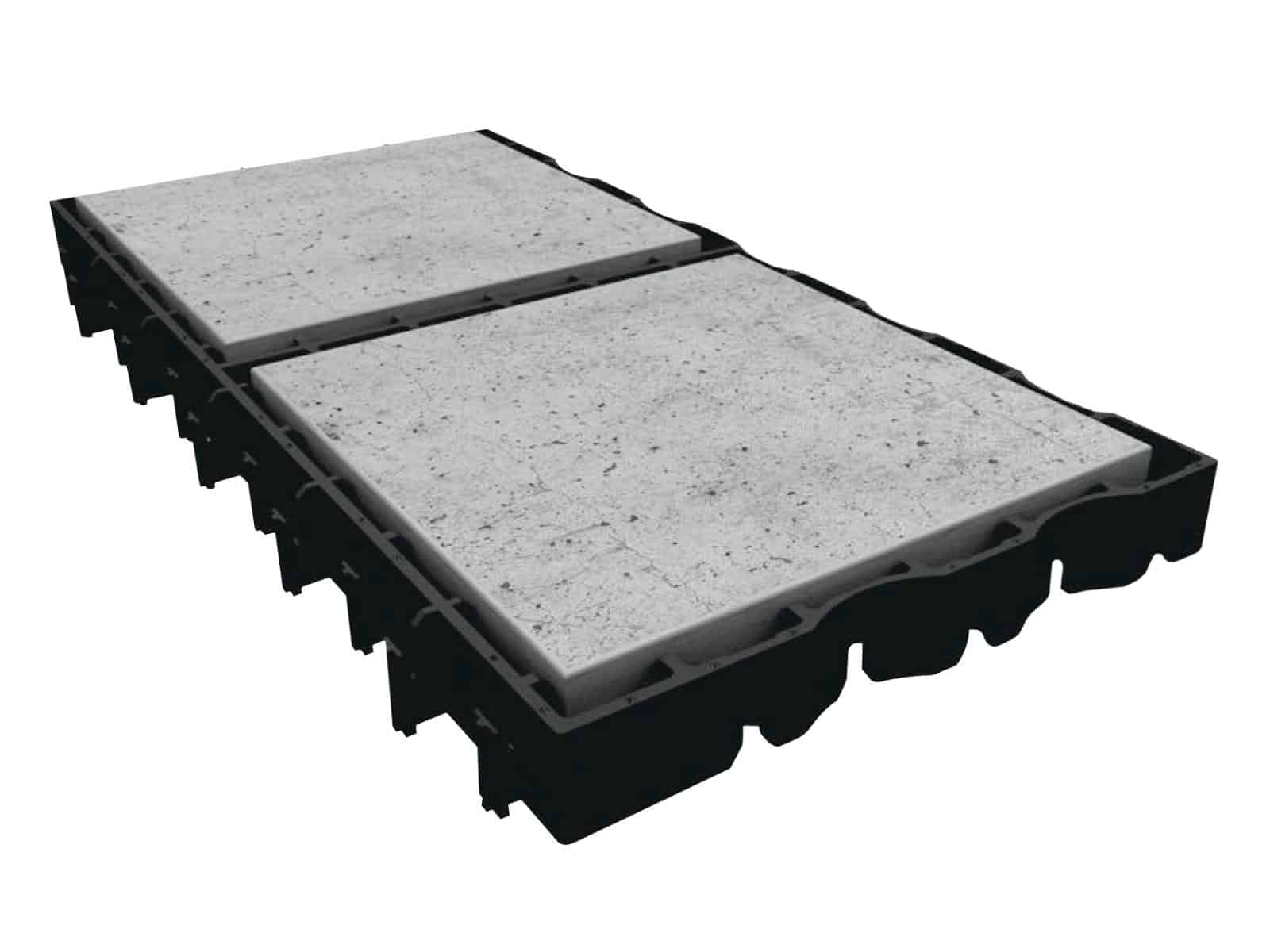

GridX Permeable G50 Double Stone Grid As a natural alternative to asphalt or concrete, GridX is perfect for parking lots, driveways, high traffic walkways, and many other applications. The double stone parking grid stabilizes base ground material and provides a perfectly aligned installation base for 12” x 12” x 1.5” paving stones. Grid Specifications Dimensions 432 mm (13.5”) x 686 mm (27”) x 47mm (1.875”) Coverage Area 0.235 m2 (2.53 sq ft) Weight 1.18 kg (2.6 lbs) Wall Thickness Variable Up to 6.4 mm (0.2519”) Climate -40oC to +40 oC (-40 oF to 104 oF) Interlock 54 Locking Notch Connections / m2 Material 100% Post Consumer Recycled Plastic Colour Black Standard Packaging Details 1 Box / 8 pcs 1.86 m2 40.64 cm x 73.66 cm x 40.64 cm – 9.43 kg 1 Box / 8 pcs 20 sq ft 16” W x 29” L x 16” H – 20.8 lbs 1 Pallet / 240 pcs / 56.21 m2 1.22 m x 1.42 m x 2.01 m – 283 kgs 1 Pallet / 240 pcs / 605 sq ft 48” W x 56” L x 79” H – 624 lbs 21 Pallets / 5,040 pcs / 1180 m2 5,944 kgs 21 Pallets / 5,040 pcs / 12,700 sq ft 13,104 lbs

Question 1

GridX Paving Grid Features

Accepted Answer

Lock into StrengthThe strong interlocking grid can be filled with soil, gravel, grass, or paving stones to improve grid strength and withstand heavy traffic, including construction equipment, snowplows, lawnmowers, trucks and other utility vehicles.A Green SolutionThe porous GridX web structure supports Low Impact Development by allowing rain and stormwater to saturate the ground evenly, improving earth retention, slope protection and groundwater recharge.A Natural FitManufactured from 100% post-consumer recycled (PCR) plastic, GridX is an environmentally-friendly resin product that leaves behind a significantly smaller ecological footprint than other paving methods.Leading-Edge DesignGridX’s matrix design combines rigid squares for maximum load-bearing durability with curved, torsional flex fins to handle thermal expansion and contraction as well as weight fluctuations.

Question 2

Common Uses of the GridX Paving Grid

Accepted Answer

Roads and DrivewaysGridX is ideal for cost-effective and fast construction of access routes for industrial and commercial buildings, fire lanes, emergency routes and remote areas.Parking LotsBreak new ground with a permeable parking lot that is easy to install and maintain. Optional 12” x 12“ porous paver stones can be set into the Double Stone Parking Grid for 8 foot parking space line markers.Animal PaddocksSolve the problem of messy farm yards, paddocks and equestrian arenas with a reliable, well-drained surface. GridX panels drain evenly and hold soil in place, creating a safe and clean environment for you and your animals without the worry of falls from muddy, slippery surfaces.

Question 3

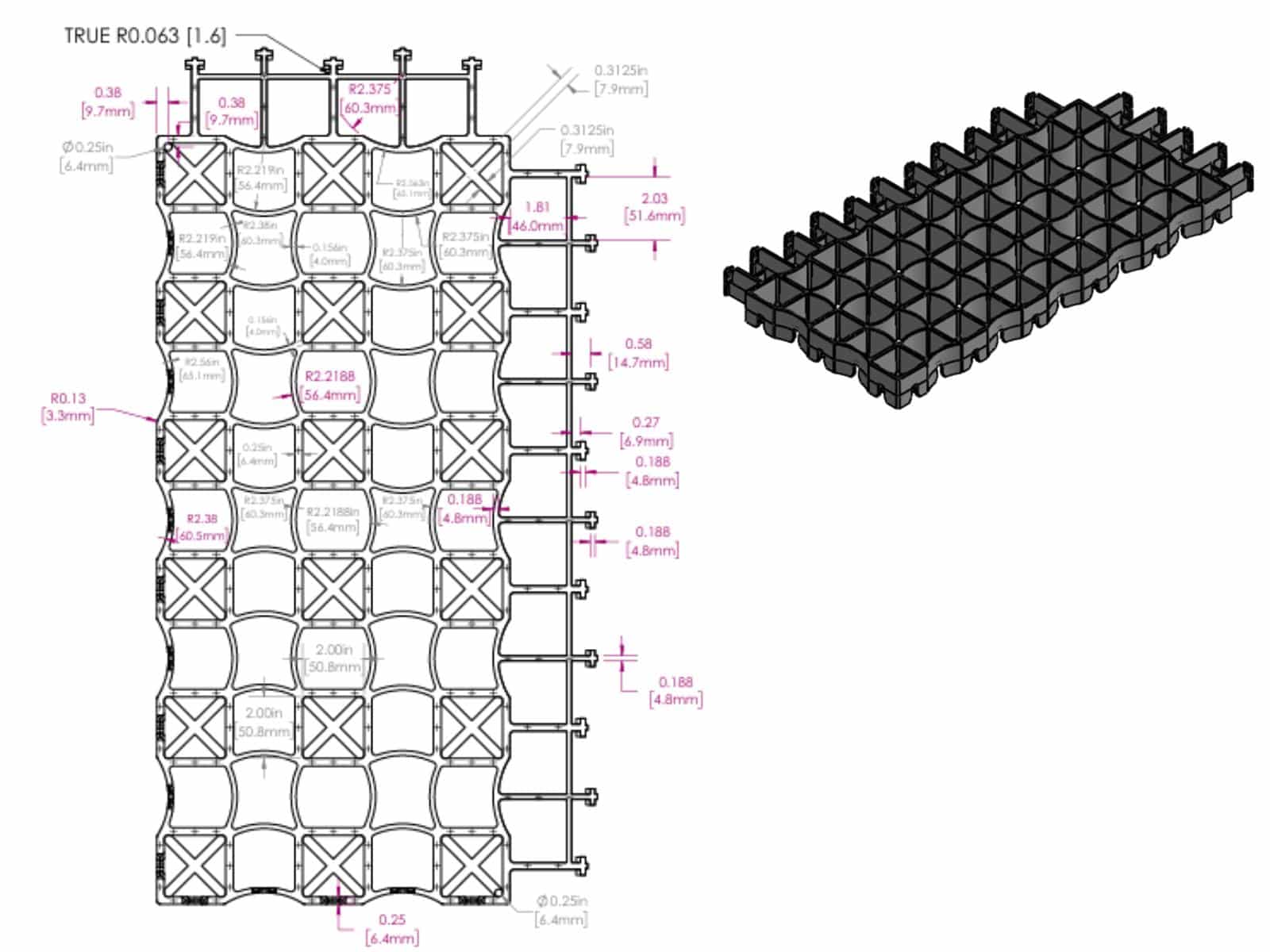

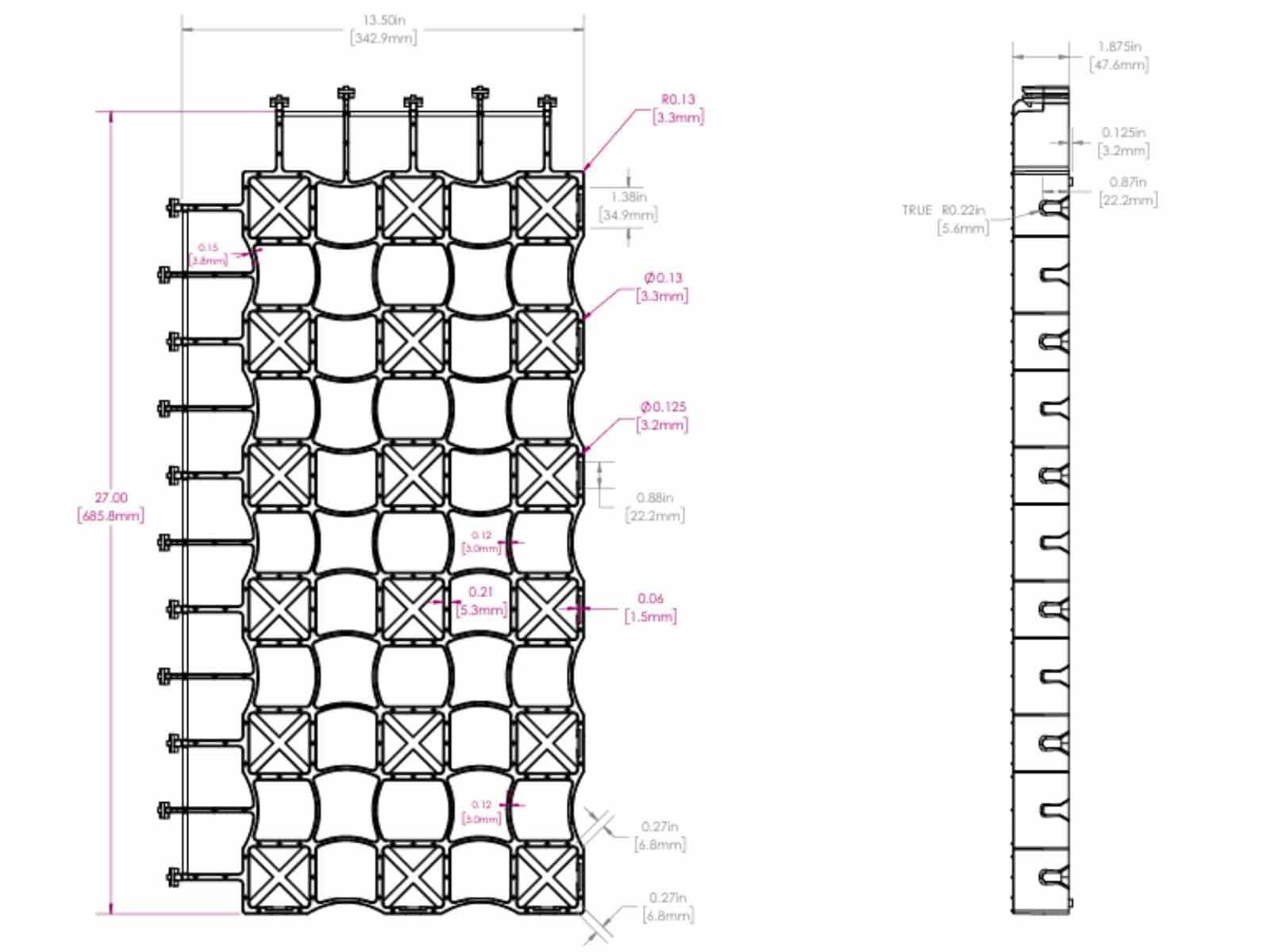

Product Specs for GridX Parking Grid

Accepted Answer

GridX G50 Parking GridAs a natural alternative to asphalt or concrete, GridX is perfect for parking lots, driveways, high traffic walkways, animal paddocks and many other applications. The porous grid stabilizes ground material eliminating potholes, ruts and mud – and allows water to permeate the ground, creating a flexible and durable surface for vehicles, pedestrians and livestock.Grid SpecificationsDimensions 432 mm (13.5”) x 686 mm (27”) x 47mm (1.875”) Coverage Area 0.235 m2 (2.53 sq ft) Weight 1.78 kg (3.9 lbs) Loading 807 ton/m2 (165,000 lbs/sq ft) Depending on Fill Type Wall Thickness Variable Up to 6.4 mm (0.2519”) Climate -40oC to +40 oC (-40 oF to 104 oF) Interlock 54 Locking Notch Connections / m2 Maintenance None, Snowplow/Blower Ready Material 100% Post Consumer Recycled Plastic Colour BlackStandard Packaging Details1 Box / 8 pcs 1.86 m 40.64 cm x 73.66 cm x 40.64 cm – 16.3 kg 1 Box / 8 pcs 20 sq ft 16” W x 29” L x 16” H – 36 lbs 1 Pallet / 240 pcs / 56.21 m2 1.22 m x 1.42 m x 2.01 m – 436 kgs 1 Pallet / 240 pcs / 605 sq ft 48” W x 56” L x 79” H – 960 lbs 21 Pallets / 5,040 pcs / 1180 m2 8,916 kgs 21 Pallets / 5,040 pcs / 12,700 sq ft 19,656 lbs

Question 4

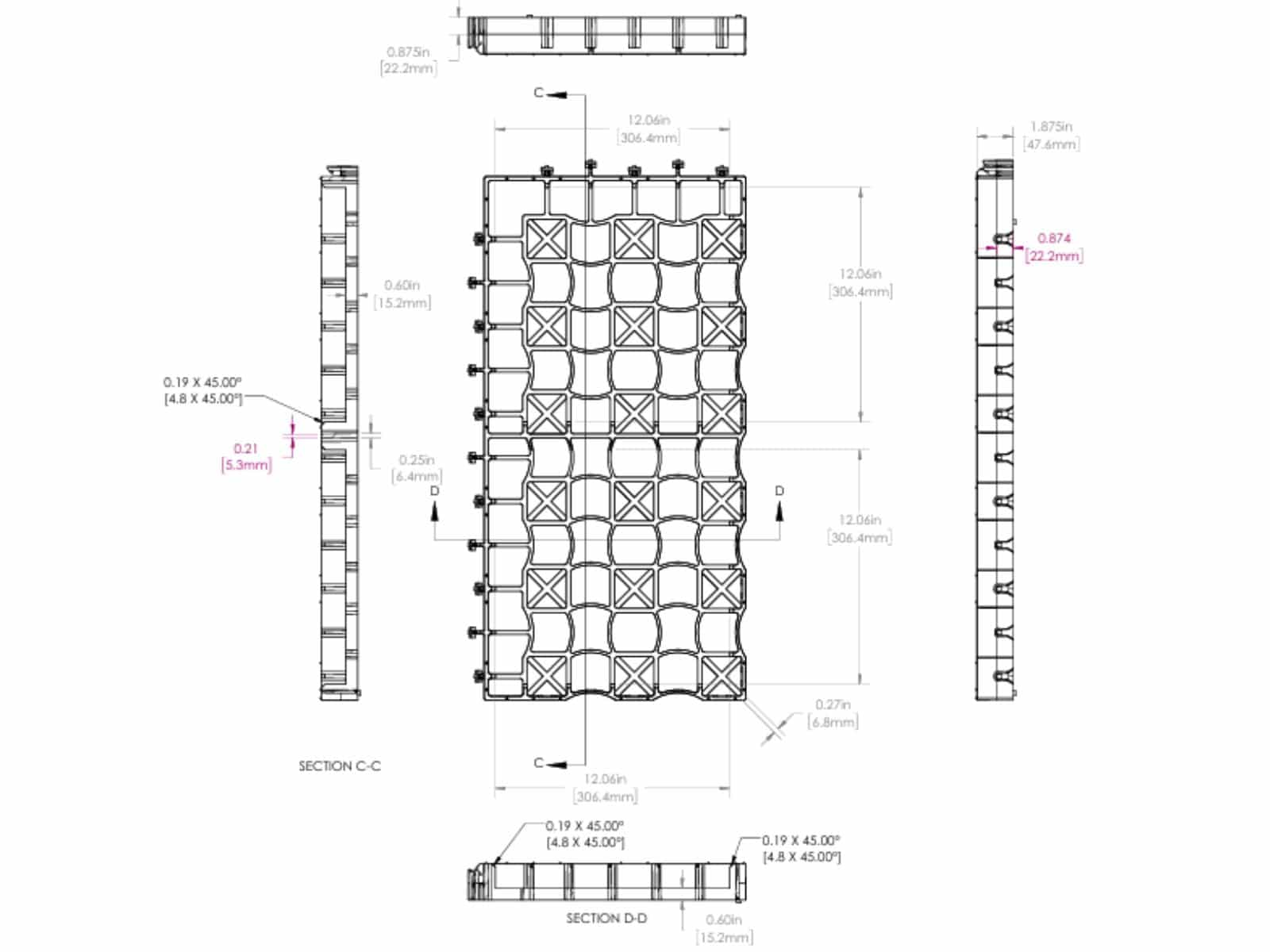

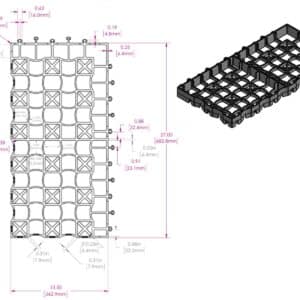

Product Specs for GridX Paving Stone Grid

Accepted Answer

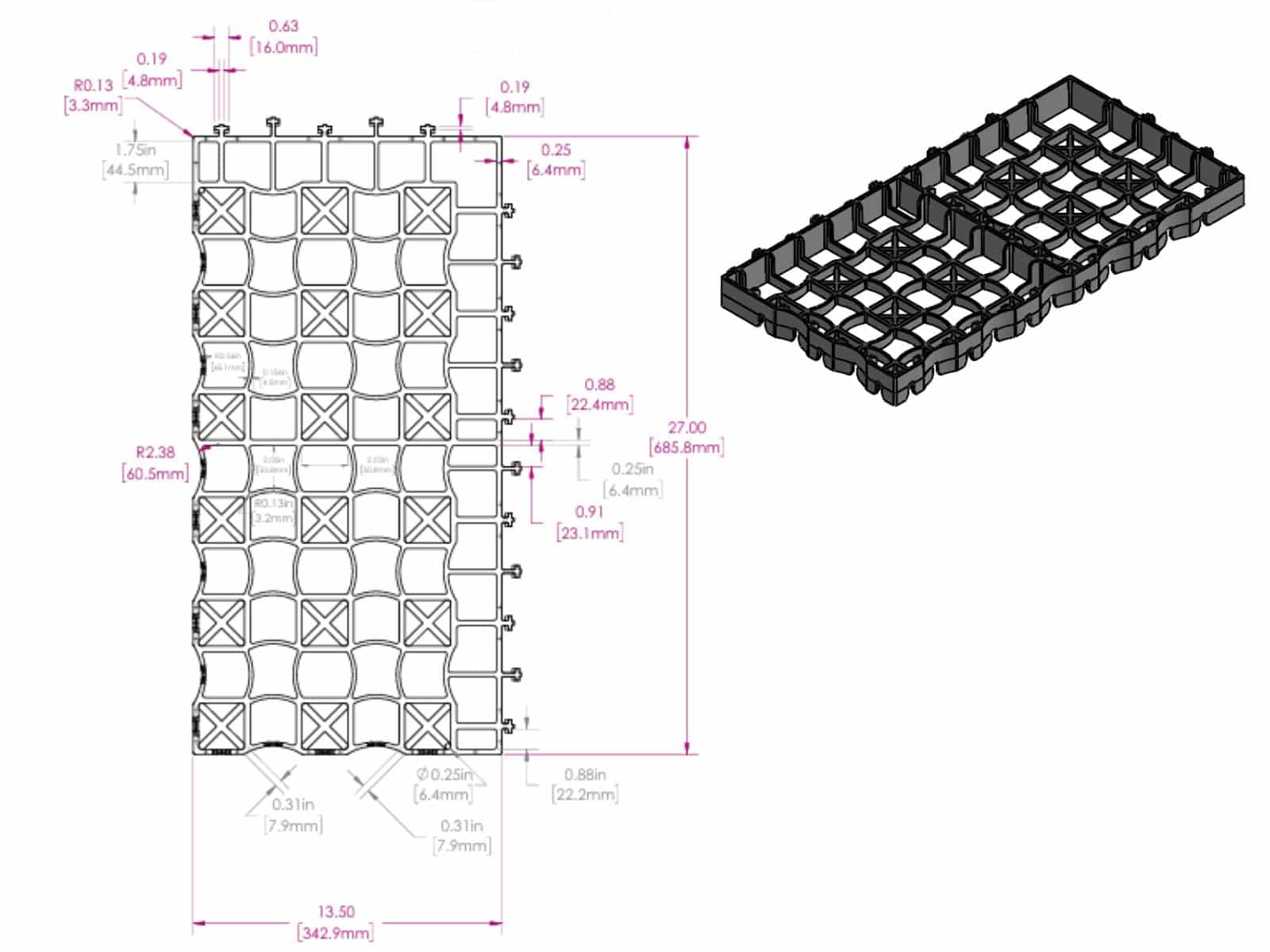

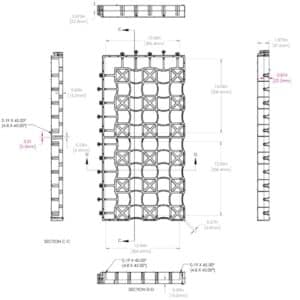

GridX Permeable G50 Double Stone Grid
As a natural alternative to asphalt or concrete, GridX is perfect for parking lots, driveways, high traffic walkways, and many other applications. The double stone parking grid stabilizes base ground material and provides a perfectly aligned installation base for 12” x 12” x 1.5” paving stones.

Grid Specifications

Dimensions	432 mm (13.5”) x 686 mm (27”) x 47mm (1.875”)
Coverage Area	0.235 m2 (2.53 sq ft)
Weight	1.18 kg (2.6 lbs)
Wall Thickness	Variable Up to 6.4 mm (0.2519”)
Climate	-40oC to +40 oC (-40 oF to 104 oF)
Interlock	54 Locking Notch Connections / m2
Material	100% Post Consumer Recycled Plastic
Colour	Black

Standard Packaging Details

1 Box / 8 pcs 1.86 m2	40.64 cm x 73.66 cm x 40.64 cm – 9.43 kg
1 Box / 8 pcs 20 sq ft	16” W x 29” L x 16” H – 20.8 lbs

1 Pallet / 240 pcs / 56.21 m2	1.22 m x 1.42 m x 2.01 m – 283 kgs
1 Pallet / 240 pcs / 605 sq ft	48” W x 56” L x 79” H – 624 lbs

21 Pallets / 5,040 pcs / 1180 m2	5,944 kgs
21 Pallets / 5,040 pcs / 12,700 sq ft	13,104 lbs
