CSA B137.1 Series 75 PSI
| PIPE SIZE | NOMINAL I.D. | NOMINAL O.D. | MINIMUM WALL | WORKING PSI @ 73.4F | WEIGHT PER 100′ | COIL LENGTHS | REEL LENGTH |
|---|---|---|---|---|---|---|---|
| 1/2″ | 0.622 | 0.762 | 0.070 | 75 | 6.4 | 100/400 | 3000′ |
| 3/4″ | 0.824 | 0.994 | 0.085 | 75 | 10.2 | 100/400 | 2500′ |
| 1″ | 1.049 | 1.265 | 0.108 | 75 | 16.5 | 100/300/500 | 1000′ 1500′ |

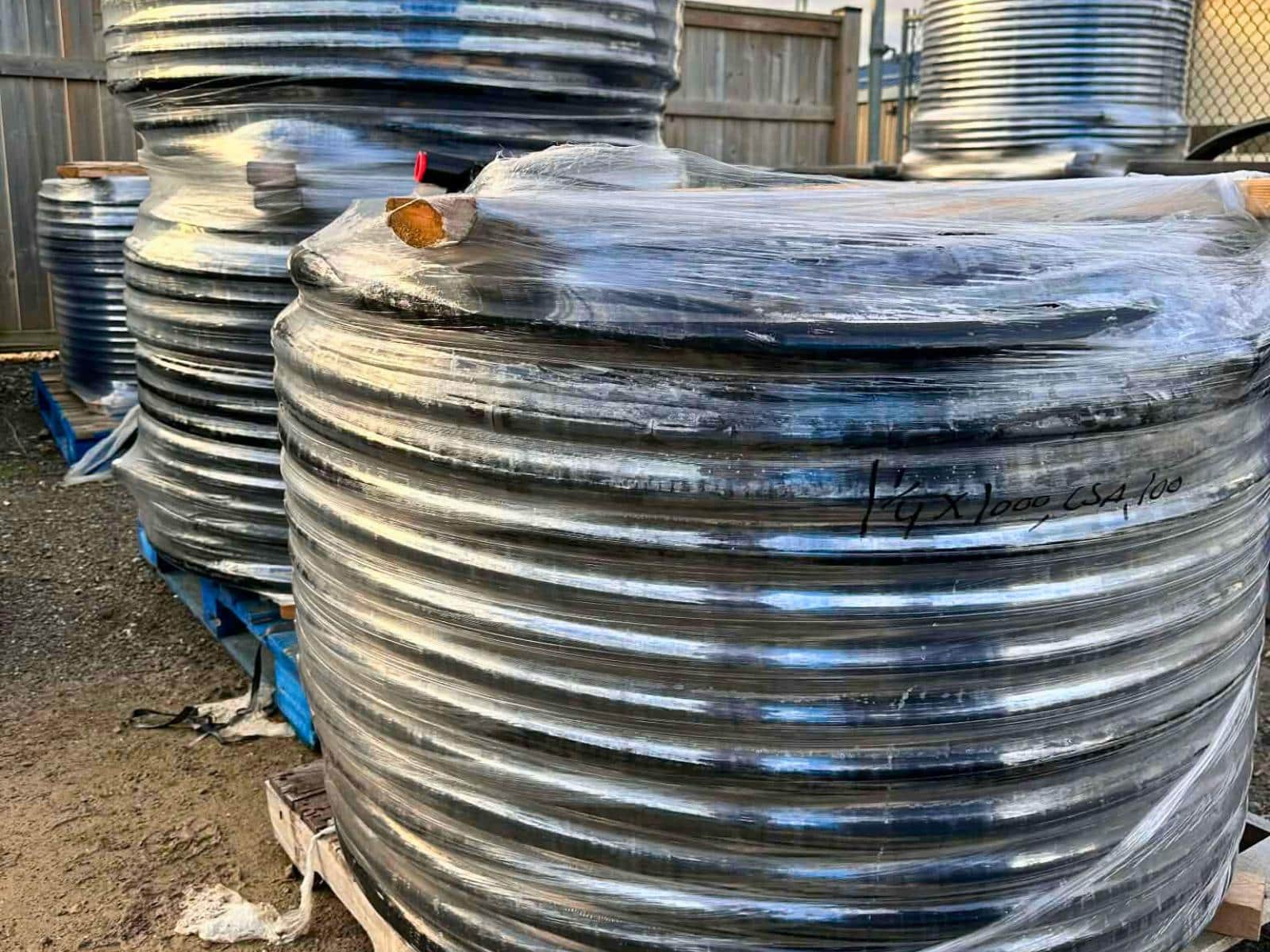

| 1-1/4″ | 1.380 | 1.667 | 0.143 | 75 | 28.4 | 100/300/500 | 1000′ |
| 1-1/2″ | 1.610 | 1.942 | 0.166 | 75 | 38.5 | 100/250 | 900′ |
| 2″ | 2.067 | 2.495 | 0.214 | 75 | 63.6 | 100/200/500 |

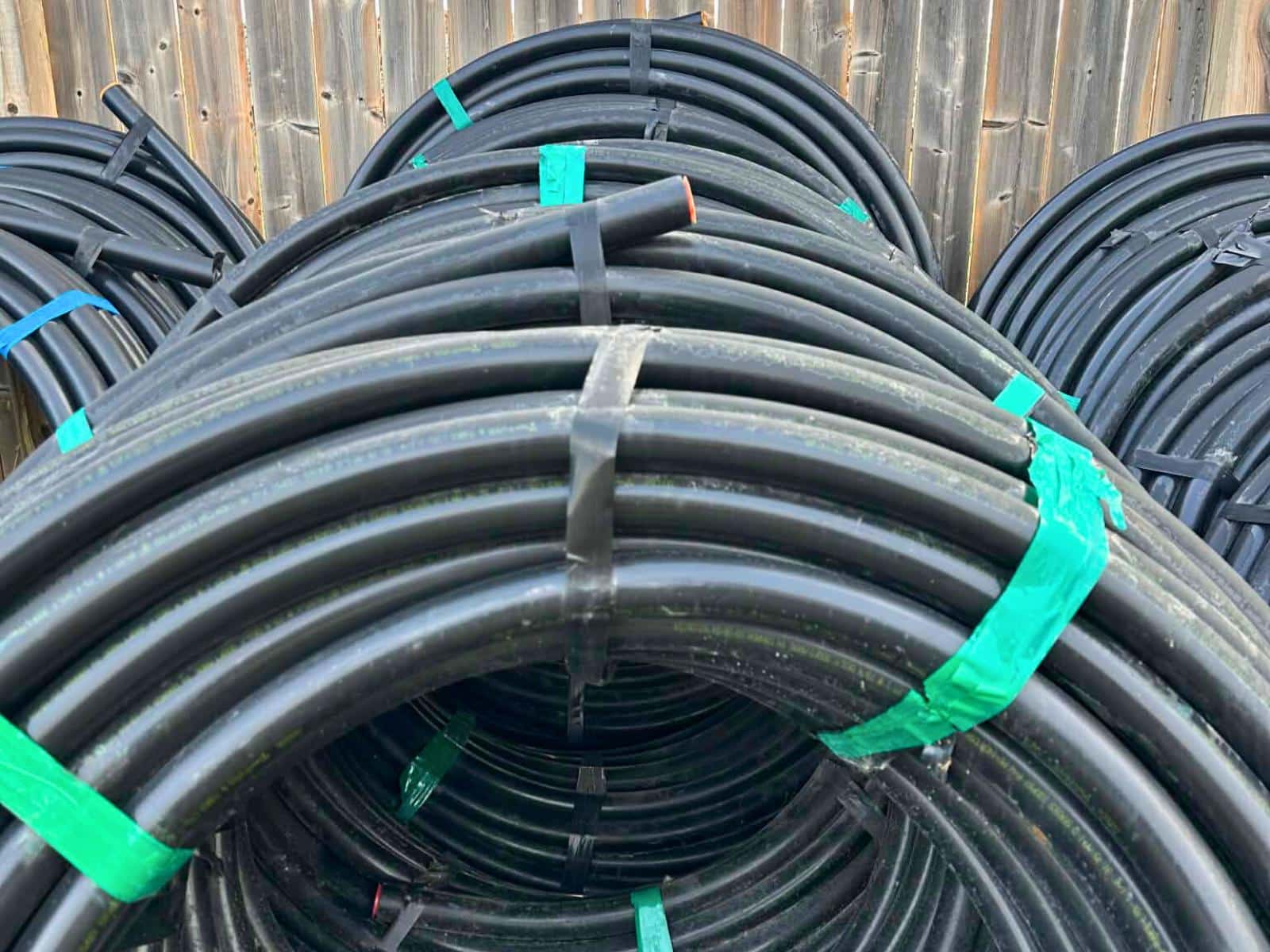

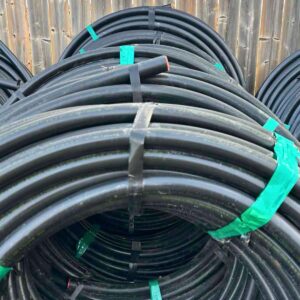

CSA B137.1 Series 100 PSI
| PRODUCT CODE | NOMINAL PIPE SIZE | NOMINAL INTERIOR DIMENSION | MINIMUM WALL | WEIGHT PER 100′ | WORKING PSI @ 73.4F | COIL LENGTHS | REEL LENGTH |
|---|---|---|---|---|---|---|---|
| 15301 | 1/2″ | 0.622 | 0.089 | 8.3 | 100 | 100/400 | 3000′ |
| 15304 | 3/4″ | 0.824 | 0.118 | 14.5 | 100 | 100/400 | 2500′ |

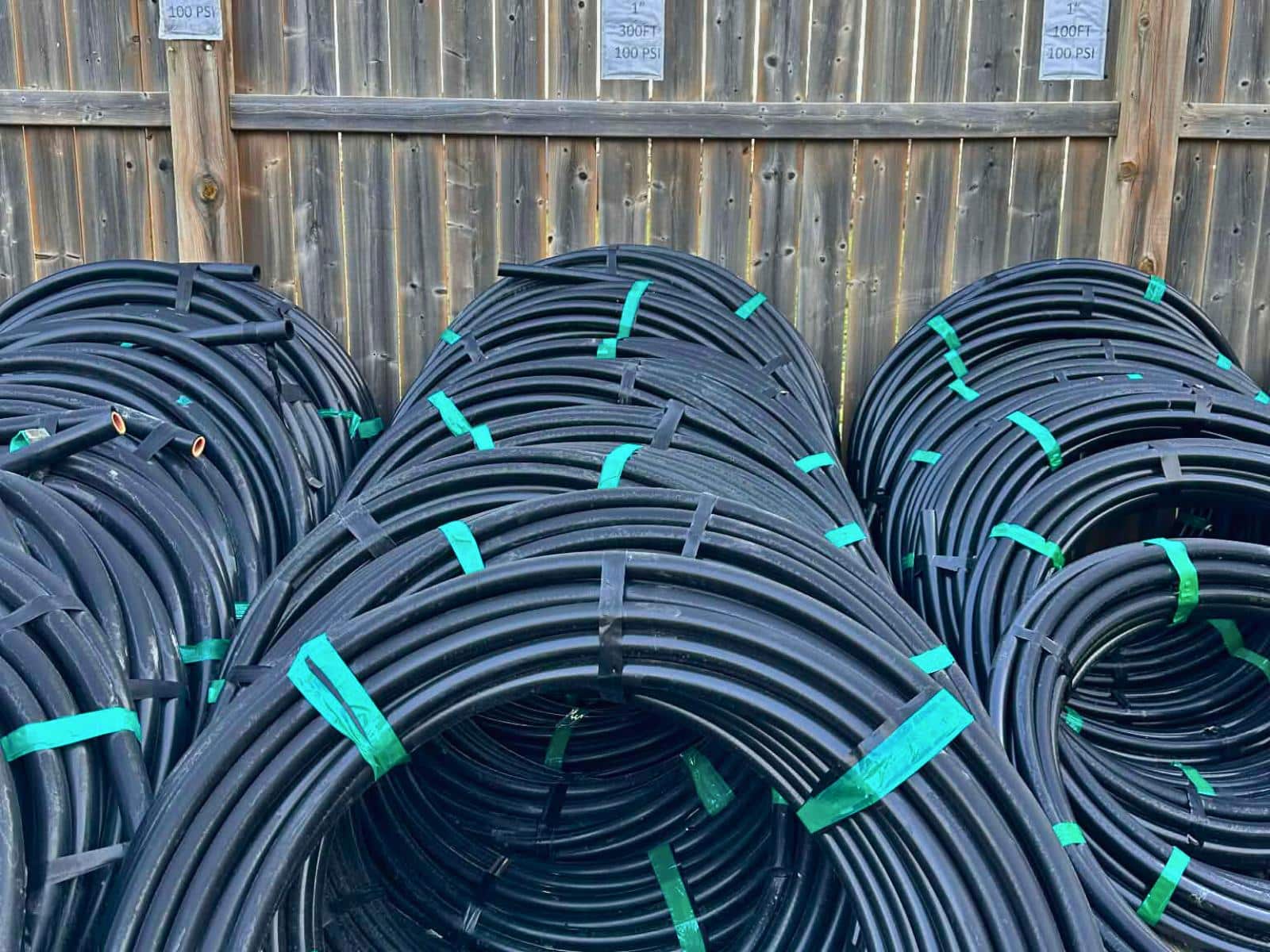

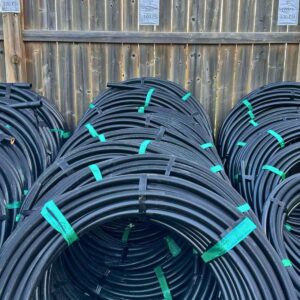

| 15307 | 1″ | 1.049 | 0.150 | 23.4 | 100 | 100/300 | 1500′ |

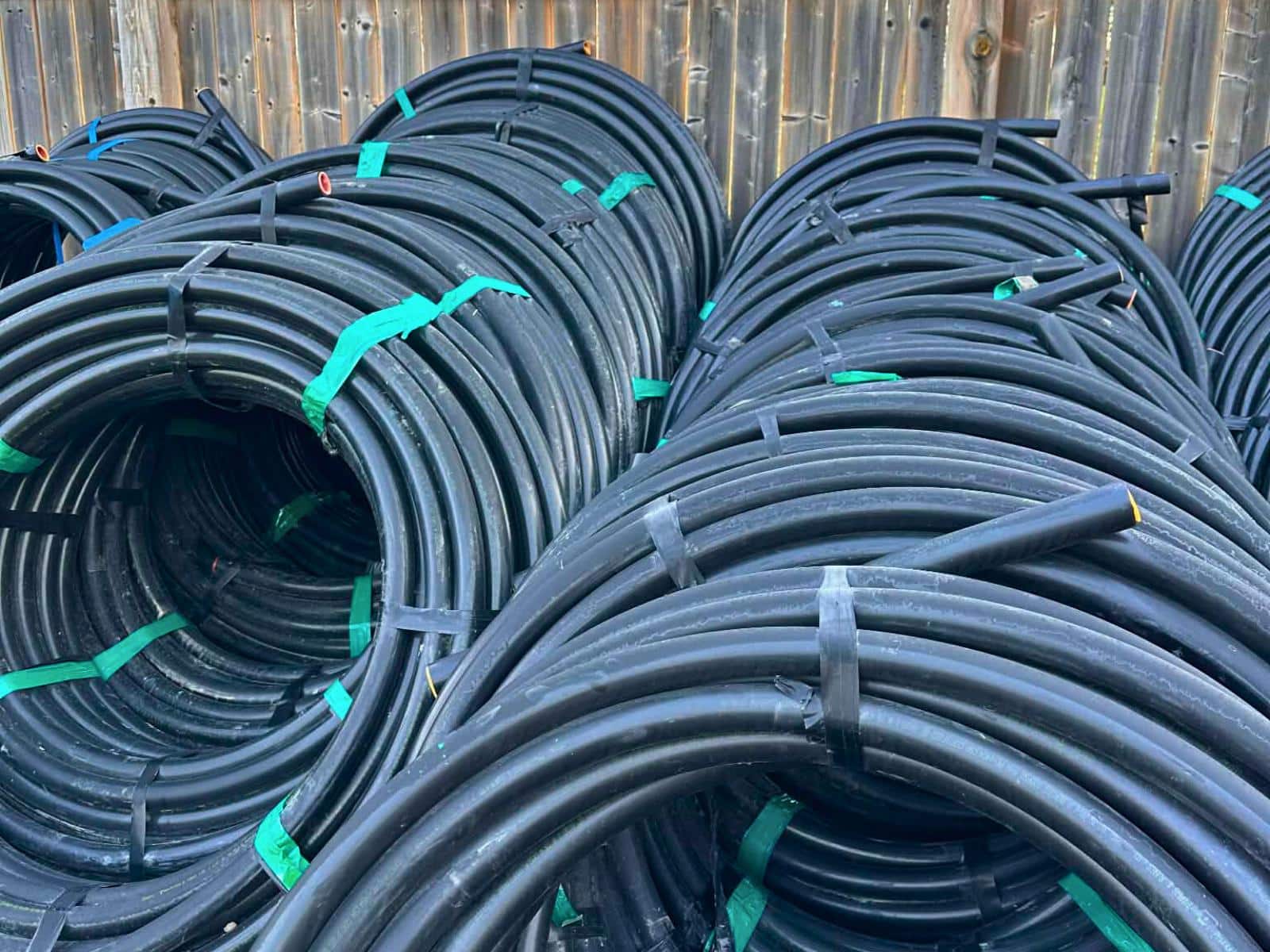

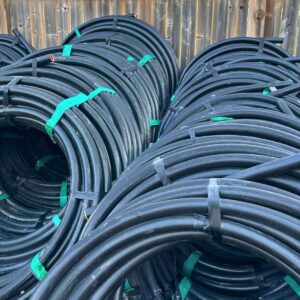

| 15310 | 1-1/4″ | 1.380 | 0.197 | 40.2 | 100 | 100/300 | 1000′ |
| 15316 | 1-1/2″ | 1.610 | 0.230 | 55.0 | 100 | 100/250 | 900′ |
| 15321 | 2″ | 2.067 | 0.295 | 90.0 | 100 | 100/200 | 500′ |
CSA B137.1 Series 100 PSI Blue LLDPE
| PRODUCT CODE | NOMINAL PIPE SIZE | NOMINAL INTERIOR DIMENSION | MINIMUM WALL | WEIGHT PER 100′ | WORKING PSI @ 73.4F | REEL LENGTH |
|---|---|---|---|---|---|---|
| CS-15306-BLUE | 1″ | 1.049 | 0.149 | 23.4 | 100 | 100′ |
| CS-15307-BLUE | 1″ | 1.049 | 0.149 | 23.4 | 100 | 300′ |
| CS-15308-BLUE | 1″ | 1.049 | 0.149 | 23.4 | 100 | 1500′ |
| CS-15309-BLUE | 1-1/4″ | 1.380 | 0.197 | 40.2 | 100 | 100′ |
| CS-15310-BLUE | 1-1/4″ | 1.380 | 0.197 | 40.2 | 100 | 300′ |
| CS-15311-BLUE | 1-1/4″ | 1.380 | 0.197 | 40.2 | 100 | 1000′ |
MUNICIPAL SERVICE LINE TUBING CSA 250 PSI – CSA SERIES CTS AWWA
| PRODUCT CODE | NOMINAL SIZE | NOMINAL WALL | NOMINAL I.D. | NOMINAL O.D. | WEIGHT PER 100 FT (LBS) | LENGTHS (FT) |
|---|---|---|---|---|---|---|
| 26101 | 3/4″ | 0.102 | 0.671 | 0.875 | 10 | 100/200/300/500/1000 |
| 26107 | 1″ | 0.131 | 0.1863 | 1.125 | 17 | 100/200/300/500/1000 |
| 26111 | 1-1/4″ | 0.160 | 1.055 | 1.375 | 25 | 100/200/300/500/1000 |
| 26114 | 1-1/2″ | 0.190 | 1.625 | 1.625 | 36 | 100/200/300/500/1000 |
| 26117 | 2″ | 0.248 | 1.629 | 2.125 | 58 | 100/200/300/500/1000 |
Still searching for the right Poly Pipe for your job? View the rest of our Poly Pipe options here.
*Always check with your municipal requirements prior to installation.
